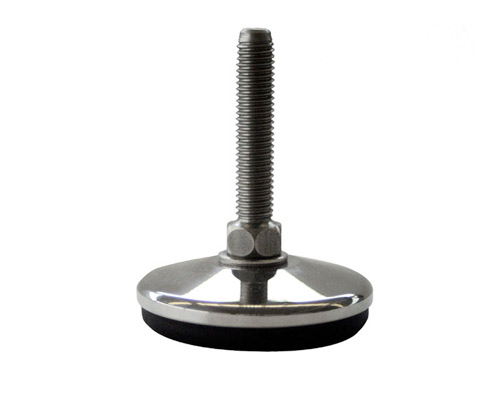

Levelling foot MASSIV Stainless Steel, Ø 60 mm, M12 x 125 mm, NBR
Optimize your equipment stability with our MASSIV Stainless Steel Leveling Foot. Designed for static loads up to 15,000 N, it features a 5° articulated screw and robust NBR anti-slip.
| Quantity | Price |
|---|---|
| From 1 |
€16.17*
|
| From 13 |
€15.19*
|
| From 25 |
€14.21*
|
| From 50 |
€13.52*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 51-70 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 12 |
| Spindle length (mm): | 125 |
| Balancing angle: | 5° |

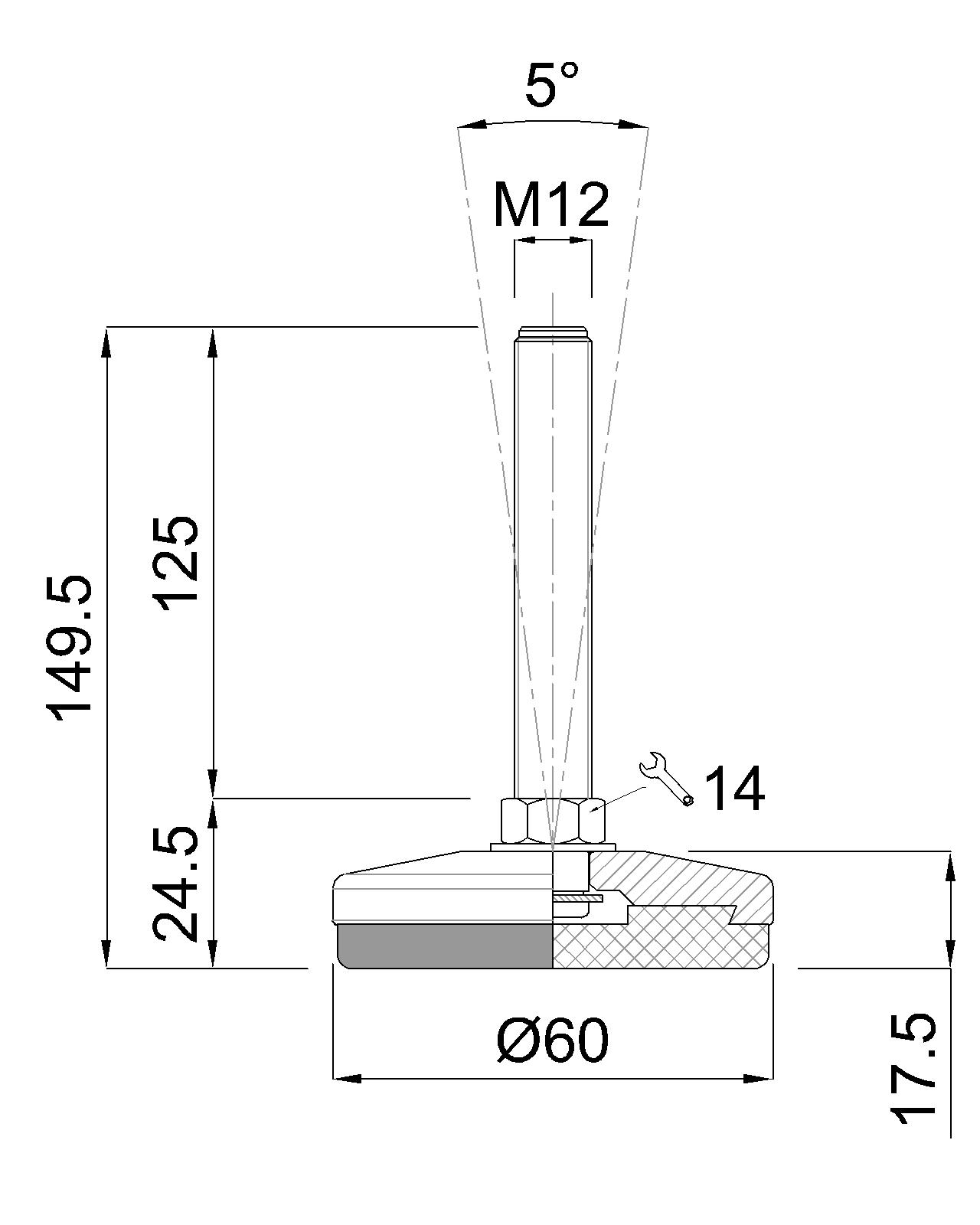

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
