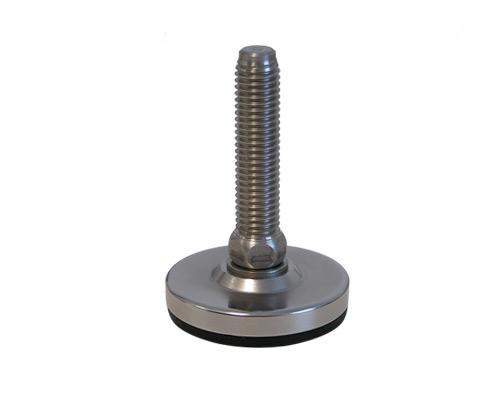

Levelling foot MASSIV Stainless Steel, Ø 50 mm, M12 x 100 mm, NBR
EAN
4061408021031
Type
45815007/50
Discover the MASSIV Stainless Steel Levelling Foot, designed for optimal stability with a static load capacity of 12,000 N. Featuring a robust articulated screw and non-slip NBR, it ensures precise leveling in various applications.
| Quantity | Price |
|---|---|
| From 1 |
€12.67*
|
| From 13 |
€11.90*
|
| From 25 |
€11.14*
|
| From 50 |
€10.60*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 41-50 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 12 |
| Spindle length (mm): | 100 |
| Balancing angle: | 5° |
Technical drawing
Levelling foot MASSIV Stainless Steel, Ø 50 mm, M12 x 100 mm, Stainlees steel, Total height 125 mm, Articulated screw 5°, Antislip NBR black, Static load 12.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
