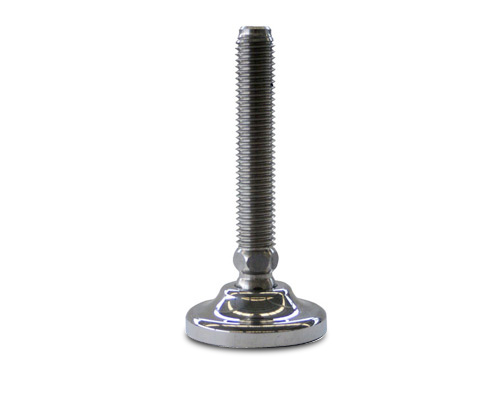

Levelling foot MASSIV Stainless Steel, Ø 50 mm, M12 x 125 mm, NBR
Enhance your projects with the MASSIV Stainless Steel Levelling Foot, featuring a 50 mm diameter and a robust static load capacity of 15,000 N. Its articulated 30° screw and non-slip NBR ensure stability and precision.
| Quantity | Price |
|---|---|
| From 1 |
€21.76*
|
| From 13 |
€20.44*
|
| From 25 |
€19.13*
|
| From 50 |
€18.20*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 41-50 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 12 |
| Spindle length (mm): | 125 |
| Balancing angle: | 30° |

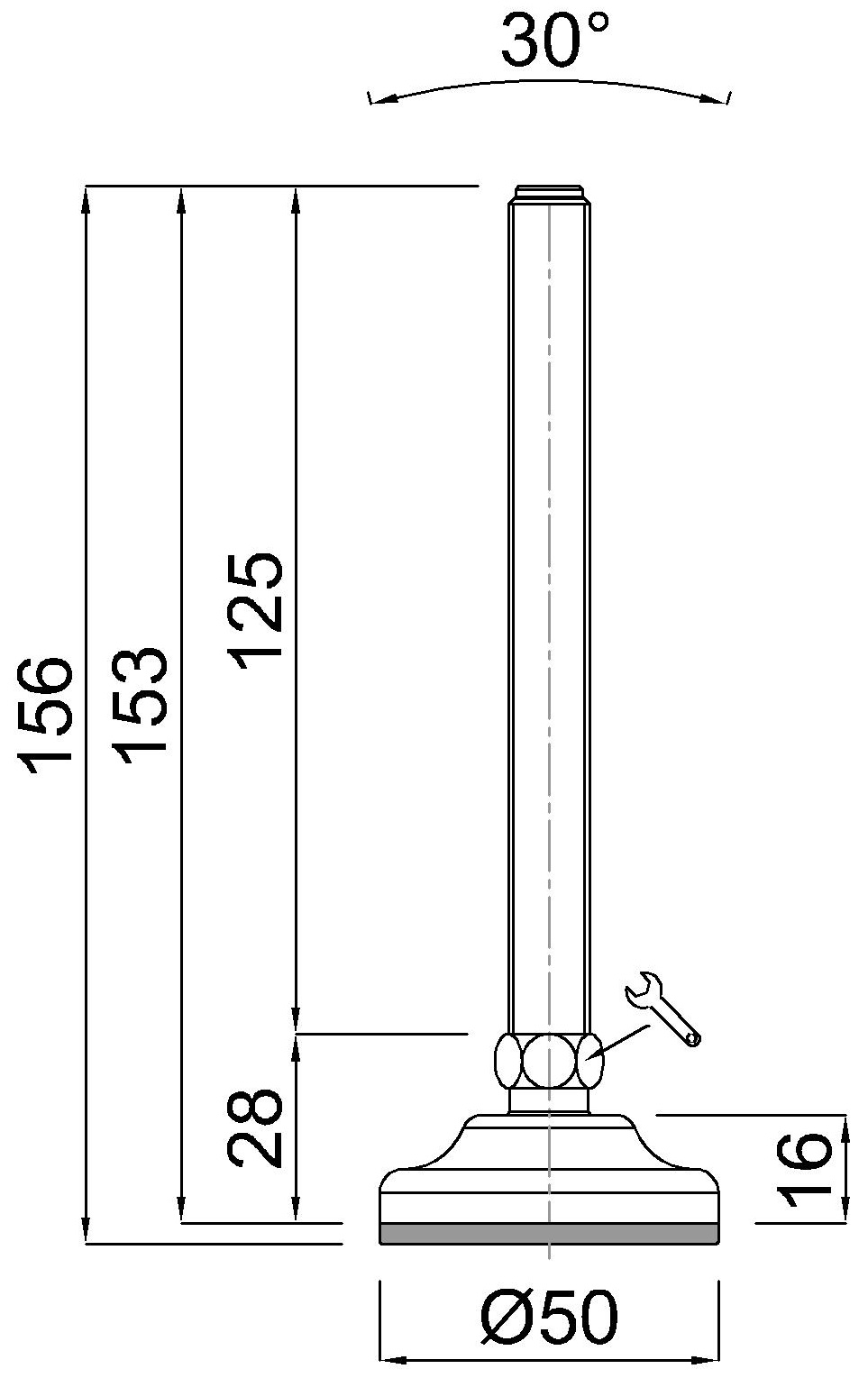

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
