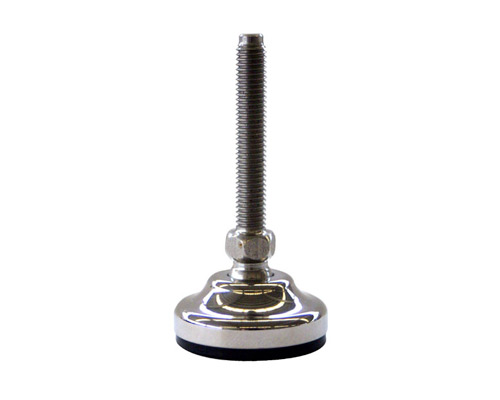

Levelling foot MASSIV Stainless Steel, Ø 40 mm, M10 x 125 mm, NBR
Discover the MASSIV Stainless Steel levelling foot, designed for precision support with a static load capacity of 10,000 N. Features a durable NBR anti-slip surface and adjustable 30° articulation.
| Quantity | Price |
|---|---|
| From 1 |
€15.89*
|
| From 13 |
€14.93*
|
| From 25 |
€13.96*
|
| From 50 |
€13.29*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 31-40 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 10 |
| Spindle length (mm): | 125 |
| Balancing angle: | 30° |

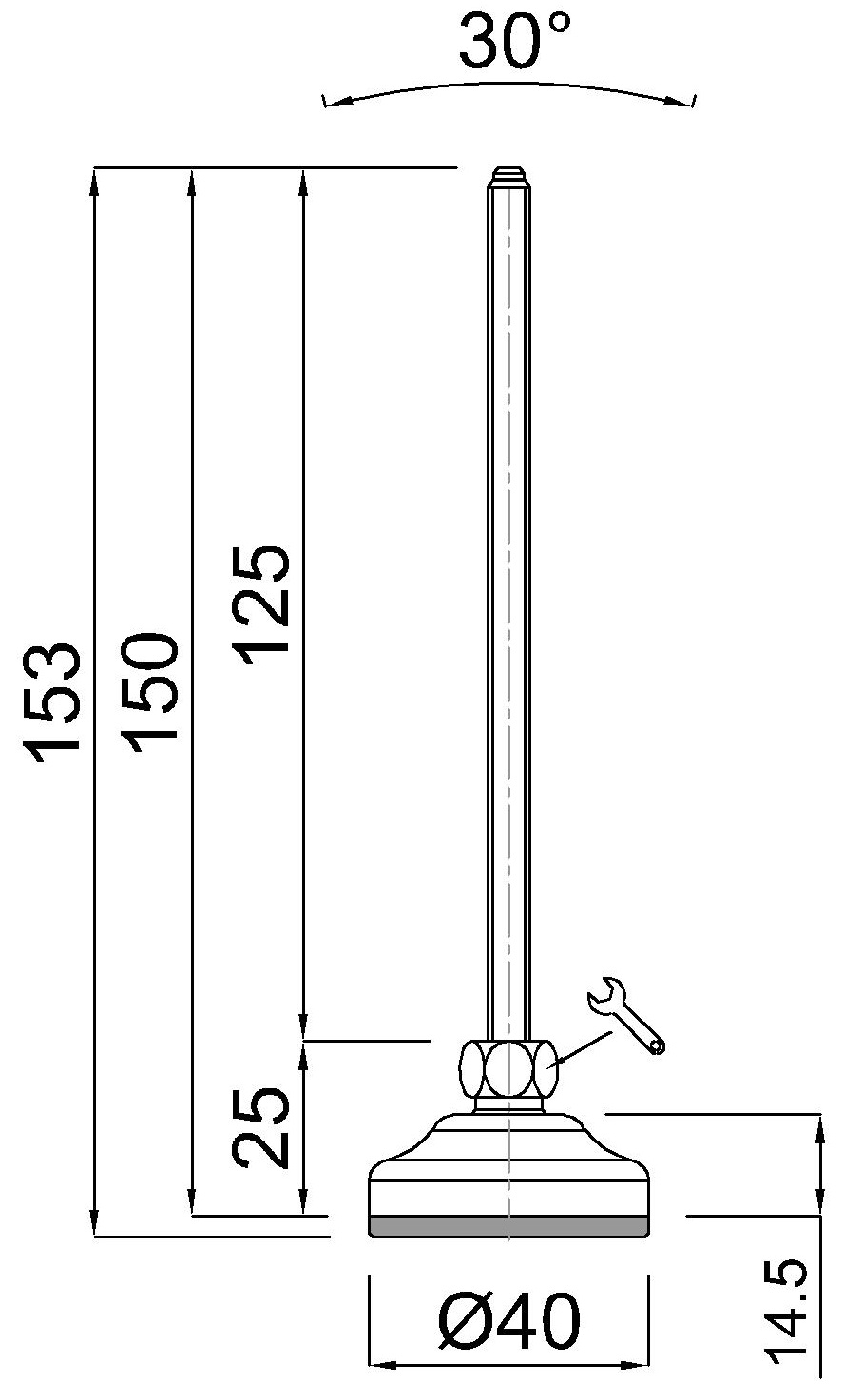

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
