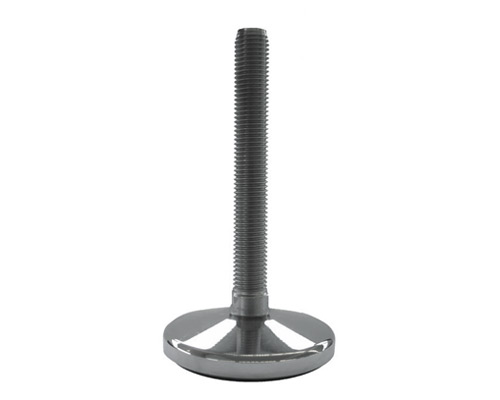

Levelling foot MASSIV Stainless Steel, Ø 100 mm, M20 x 100 mm, NBR
EAN
4061408020027
Type
45811383
Discover the MASSIV Stainless Steel Levelling Foot, designed for stability and precision. With a robust 40,000 N static load capacity, it features a 10° articulated screw and a durable NBR anti-slip base. Ideal for demanding engineering applications.
| Quantity | Price |
|---|---|
| From 1 |
€42.39*
|
| From 13 |
€39.82*
|
| From 25 |
€37.25*
|
| From 50 |
€35.45*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 91-110 |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 100 |
| Balancing angle: | 10° |
| Hygiene: | No |
Technical drawing
Levelling foot MASSIV Stainless Steel, Ø 100 mm, M20 x 100 mm, Stainlees steel, Total height 137 mm, Articulated screw 10°, Antislip NBR black, Static load 40.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
