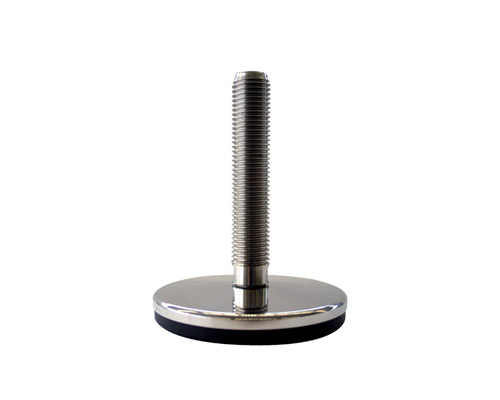

Levelling foot MASSIV Stainless Steel, Ø 150 mm, M20 x 75 mm, NBR
EAN
4061408020010
Type
45815094
Optimize your installations with the MASSIV Stainless Steel Levelling Foot. Offering a robust design with a 150 mm diameter, it supports static loads up to 50,000 N and features anti-slip NBR for stability.
| Quantity | Price |
|---|---|
| From 1 |
€72.27*
|
| From 13 |
€67.89*
|
| From 25 |
€63.51*
|
| From 50 |
€60.44*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 131-230 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 75 |
| Balancing angle: | 5° |
Technical drawing
Levelling foot MASSIV Stainless Steel, Ø 150 mm, M20 x 75 mm, Stainlees steel, Total height 114 mm, Articulated screw 5°, Antislip NBR black, Static load 50.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
