Levelling foot MASSIV Stainless Steel, Ø 60 mm, M12 x 75 mm, NBR
EAN
4061408019946
Type
45815006
Discover our MASSIV stainless steel leveling foot, featuring a robust Ø 60 mm base and M12 x 75 mm spindle. Designed for a static load capacity of 15,000 N, it ensures stability with a 5° articulation and non-slip NBR material. Ideal for precise height adjustments in demanding applications.
| Quantity | Price |
|---|---|
| From 1 |
€14.93*
|
| From 13 |
€14.03*
|
| From 25 |
€13.12*
|
| From 50 |
€12.49*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 51-70 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 12 |
| Spindle length (mm): | 75 |
| Balancing angle: | 5° |

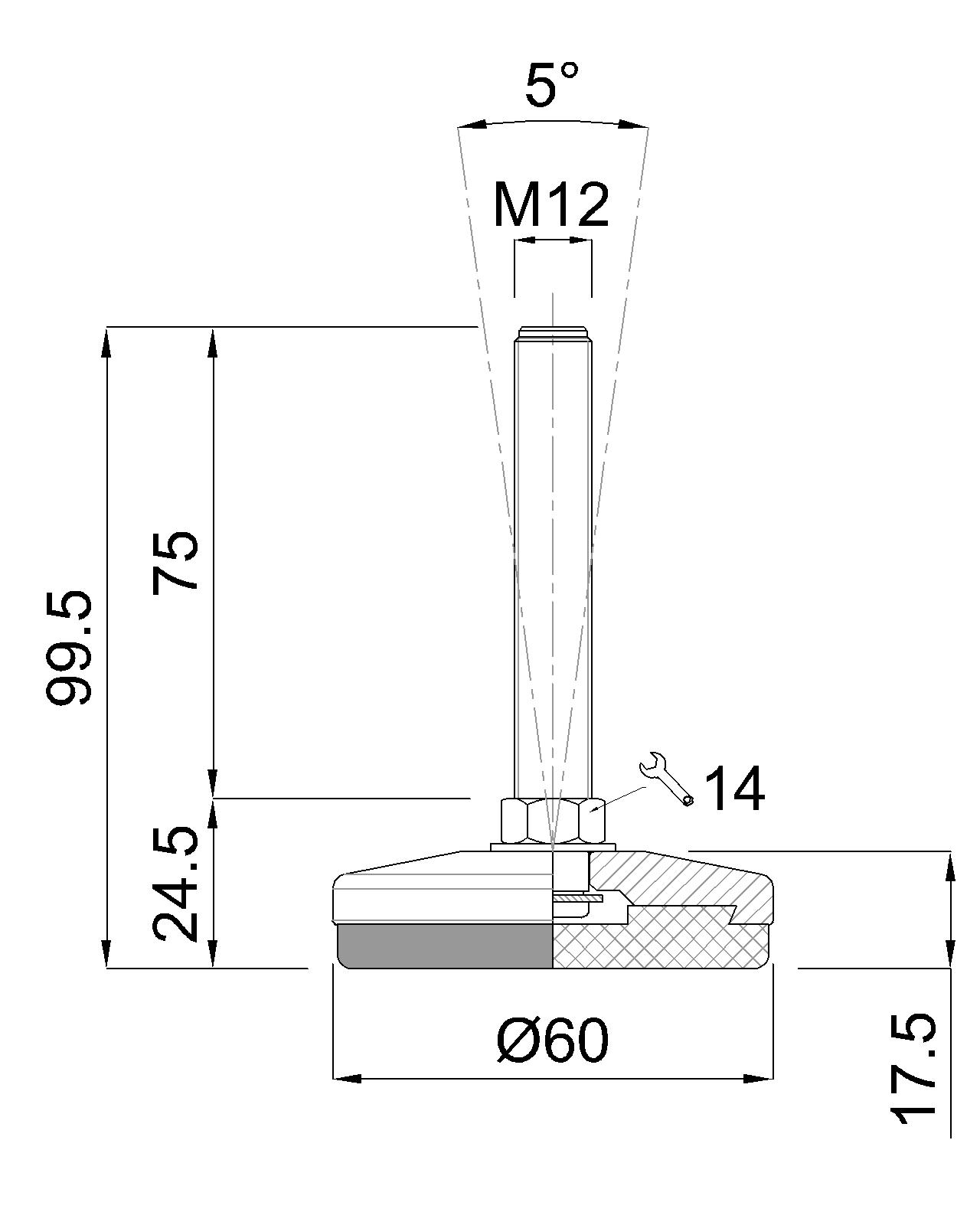

Technical drawing
Levelling foot MASSIV Stainless Steel, Ø 60 mm, M12 x 75 mm, Stainlees steel, Total height 99 mm, Articulated screw 5°, Antislip NBR black, Static load 15.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
