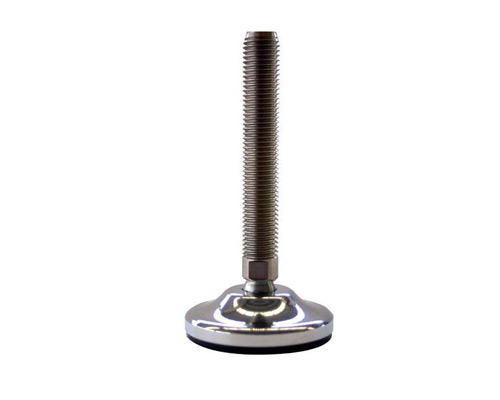

Levelling foot MASSIV Stainless Steel, Ø 120 mm, M20 x 175 mm
Discover the MASSIV Stainless Steel Levelling Foot, designed for durability and precision. With a 120 mm diameter and a 30° adjustable angle, it supports static loads up to 45,000 N. Ideal for robust applications.
| Quantity | Price |
|---|---|
| From 1 |
€69.55*
|
| From 13 |
€65.33*
|
| From 25 |
€61.12*
|
| From 50 |
€58.17*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 111-130 |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 175 |
| Balancing angle: | 30° |
| Hygiene: | No |

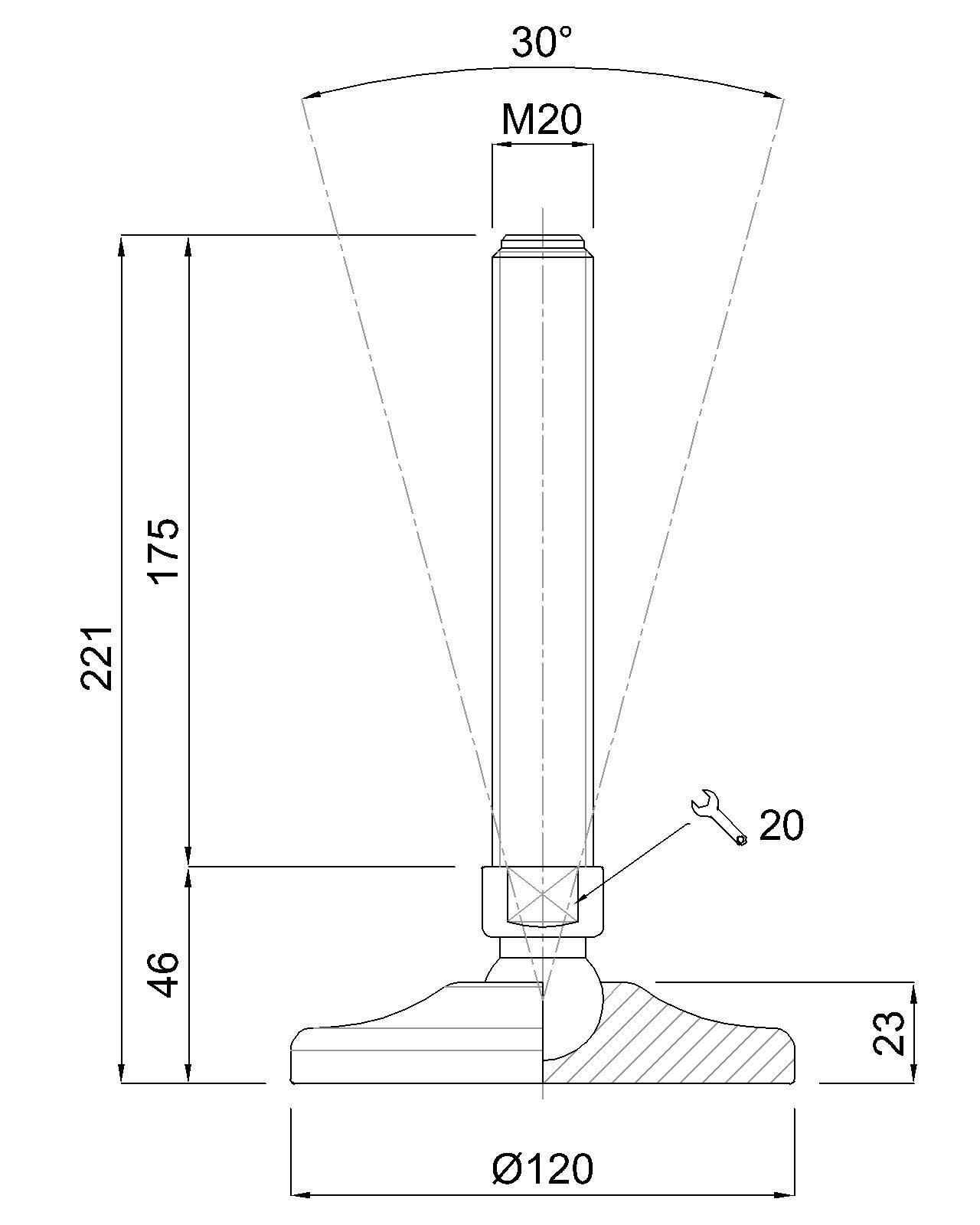

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
