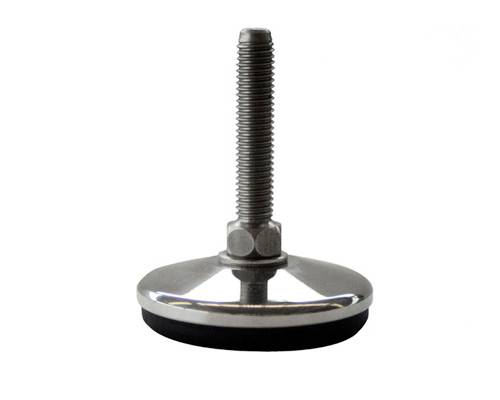

Levelling foot MASSIV Stainless Steel, Ø 60 mm, M14 x 100 mm, NBR
EAN
4061408017645
Type
45815011
The MASSIV Stainless Steel levelling foot, with a robust 60 mm diameter and 15,000 N static load capacity, features an articulated screw and NBR anti-slip base for optimal stability.
| Quantity | Price |
|---|---|
| From 1 |
€16.53*
|
| From 13 |
€15.53*
|
| From 25 |
€14.53*
|
| From 50 |
€13.83*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 51-70 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 14 |
| Spindle length (mm): | 100 |
| Balancing angle: | 5° |
Technical drawing
Levelling foot MASSIV Stainless Steel, Ø 60 mm, M14 x 100 mm, Stainlees steel, Total height 124 mm, Articulated screw 5°, Antislip NBR black, Static load 15.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
