Levelling foot MASSIV Stainless Steel, Ø 60 mm, M10 x 100 mm, NBR
Discover the MASSIV Levelling Foot in durable stainless steel, designed for stability and precision. With a 60 mm diameter, articulated screw, and a remarkable static load capacity of 15,000 N, it delivers reliable support in various applications.
| Quantity | Price |
|---|---|
| From 1 |
€15.43*
|
| From 13 |
€14.49*
|
| From 25 |
€13.56*
|
| From 50 |
€12.90*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 51-70 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 10 |
| Spindle length (mm): | 100 |
| Balancing angle: | 5° |

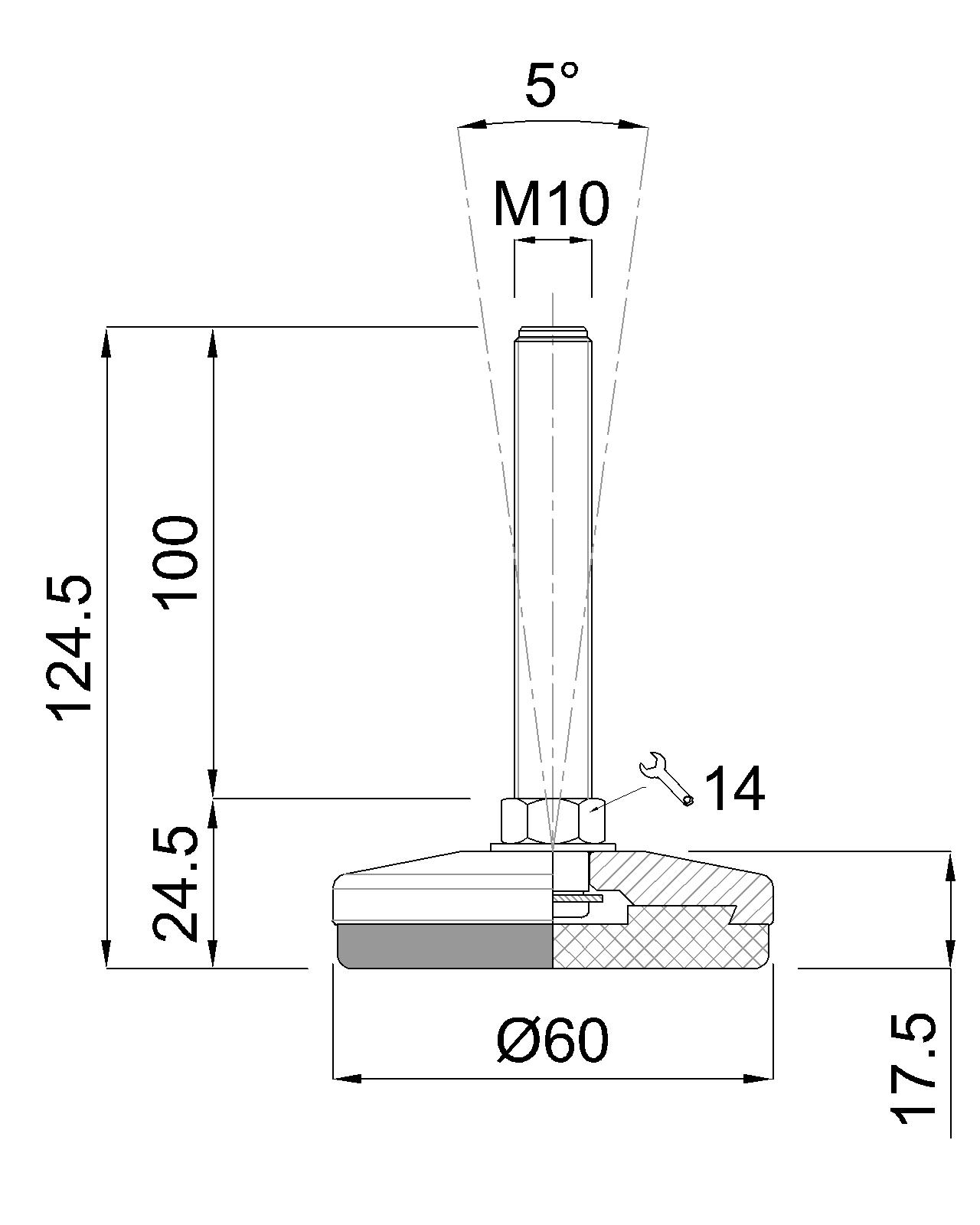

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
