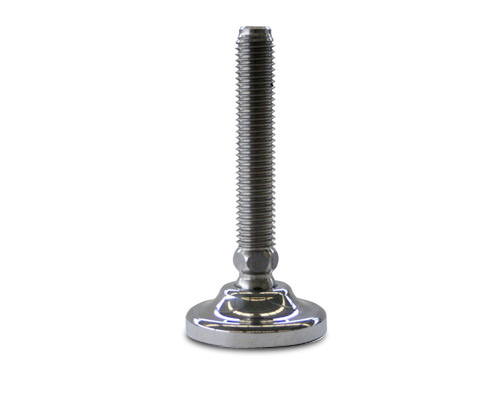

Levelling foot MASSIV Stainless Steel, Ø 50 mm, M12 x 50 mm, NBR
EAN
4061408015511
Type
45810471
Discover the MASSIV Stainless Steel Levelling Foot, designed for high static loads up to 15,000 N. With an articulated screw and robust NBR anti-slip base, it ensures stability in various applications.
| Quantity | Price |
|---|---|
| From 1 |
€18.30*
|
| From 13 |
€17.19*
|
| From 25 |
€16.08*
|
| From 50 |
€15.30*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 41-50 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 12 |
| Spindle length (mm): | 50 |
| Balancing angle: | 30° |
Technical drawing
Levelling foot MASSIV Stainless Steel, Ø 50 mm, M12 x 50 mm, Stainlees steel, Total height 81 mm, Articulated screw 30°, Antislip NBR black, Static load 15.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
