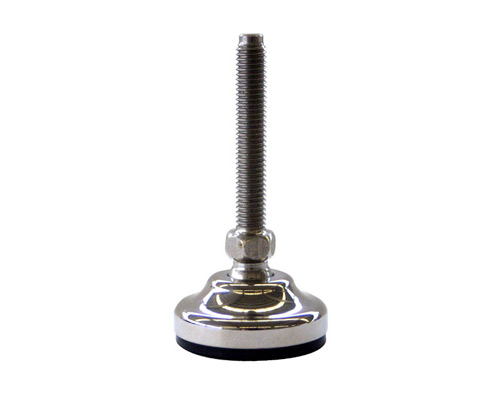

Levelling foot MASSIV Stainless Steel, Ø 40 mm, M8 x 100 mm, NBR
EAN
4061408015481
Type
45810447
Discover the MASSIV Stainless Steel Levelling Foot, designed for precision with a 40 mm diameter and 100 mm spindle. With a static load capacity of 10,000 N and a 30° articulated screw, it's perfect for stable support in diverse applications.
| Quantity | Price |
|---|---|
| From 1 |
€14.78*
|
| From 13 |
€13.89*
|
| From 25 |
€12.99*
|
| From 50 |
€12.36*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 31-40 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 8 |
| Spindle length (mm): | 100 |
| Balancing angle: | 30° |
Technical drawing
Levelling foot MASSIV Stainless Steel, Ø 40 mm, M8 x 100 mm, Stainlees steel, Total height 128 mm, Articulated screw 30°, Antislip NBR black, Static load 10.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
