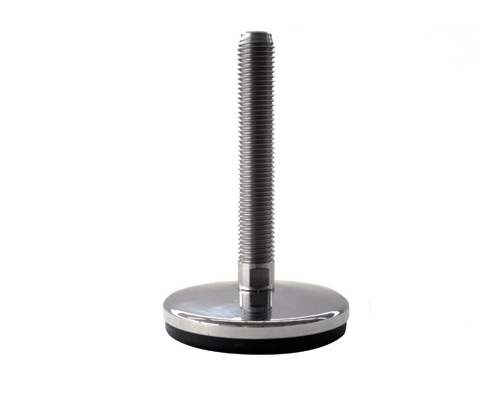

Levelling foot MASSIV Stainless Steel, Ø 100 mm, M24 x 175 mm, NBR
EAN
4061408014873
Type
45815058
The MASSIV stainless steel leveling foot features a robust design with a 100 mm diameter and M24 x 175 mm spindle, offering a static load capacity of 30,000 N. Its articulated 5° adjustment and anti-slip NBR ensure stability for diverse applications.
| Quantity | Price |
|---|---|
| From 1 |
€40.97*
|
| From 13 |
€38.49*
|
| From 25 |
€36.00*
|
| From 50 |
€34.27*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 91-110 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 24 |
| Spindle length (mm): | 175 |
| Balancing angle: | 5° |
Technical drawing
Levelling foot MASSIV Stainless Steel, Ø 100 mm, M24 x 175 mm, Stainlees steel, Total height 213 mm, Articulated screw 5°, Antislip NBR black, Static load 30.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
