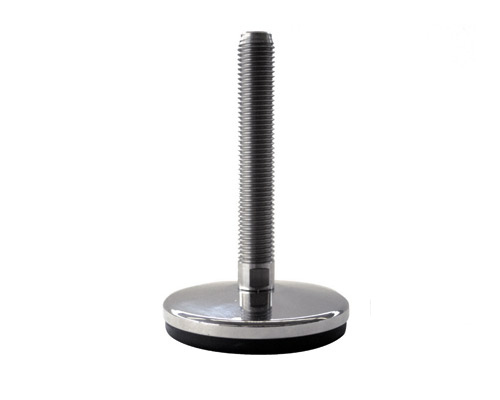

Levelling foot MASSIV Stainless Steel, Ø 100 mm, M24 x 150 mm, NBR
EAN
4061408014286
Type
45815057
Discover the MASSIV Leveling Foot in stainless steel, featuring a 100 mm diameter and M24 x 150 mm thread. With a load capacity of 30,000 N and 5° articulation, it ensures stability and non-slip performance for various applications.
| Quantity | Price |
|---|---|
| From 1 |
€38.94*
|
| From 13 |
€36.58*
|
| From 25 |
€34.22*
|
| From 50 |
€32.57*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 91-110 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 24 |
| Spindle length (mm): | 150 |
| Balancing angle: | 5° |
Technical drawing
Levelling foot MASSIV Stainless Steel, Ø 100 mm, M24 x 150 mm, Stainlees steel, Total height 188 mm, Articulated screw 5°, Antislip NBR black, Static load 30.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
