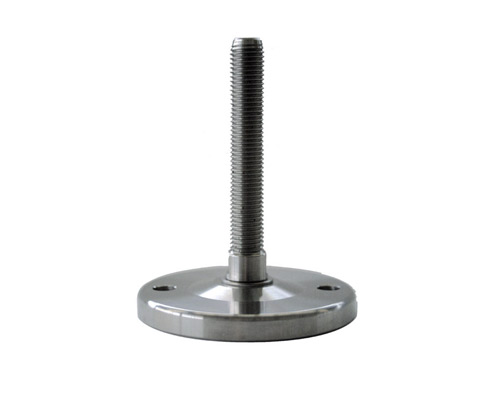

Levelling foot MASSIV Stainless Steel, Ø 100 mm, M20 x 175 mm, Drills

4061408012305
45815214

Enhance your engineering projects with our MASSIV stainless steel leveling foot, featuring a 100 mm diameter, M20 x 175 mm spindle, 5° adjustable angle, and a robust static load capacity of 30,000 N. Ideal for precision alignment and durability.

  • Robust construction with a stainless steel base plate, ensuring durability and corrosion resistance for long-term use in demanding environments
  • Adjustable spindle length of 175 mm allows for fine-tuning of height, accommodating a variety of applications and loads
  • Articulated screw design with a 5° angle provides excellent adaptability to uneven surfaces, enhancing stability
  • High static load capacity of 30,000 N enables support for heavy machinery, making it suitable for industrial applications
  • Bore holes with a diameter of 12.5 mm facilitate easy and secure mounting, simplifying installation processes
Quantity Price
From 1
€36.65*
From 13
€34.43*
From 25
€32.20*
From 50
€30.65*

Currently sold out, Refill time: 5 days

€36.65* / piece
Our payment methods:

Product properties


Footplate material: Stainless steel
Anti-slip: No
Ø range base plate (mm): 91-110
Ground fastening: 2 mounting holes
Vibration damping: No
Material spindle: Stainless steel
Ø spindle (mm): 20
Spindle length (mm): 175
Balancing angle:
Hygiene: No

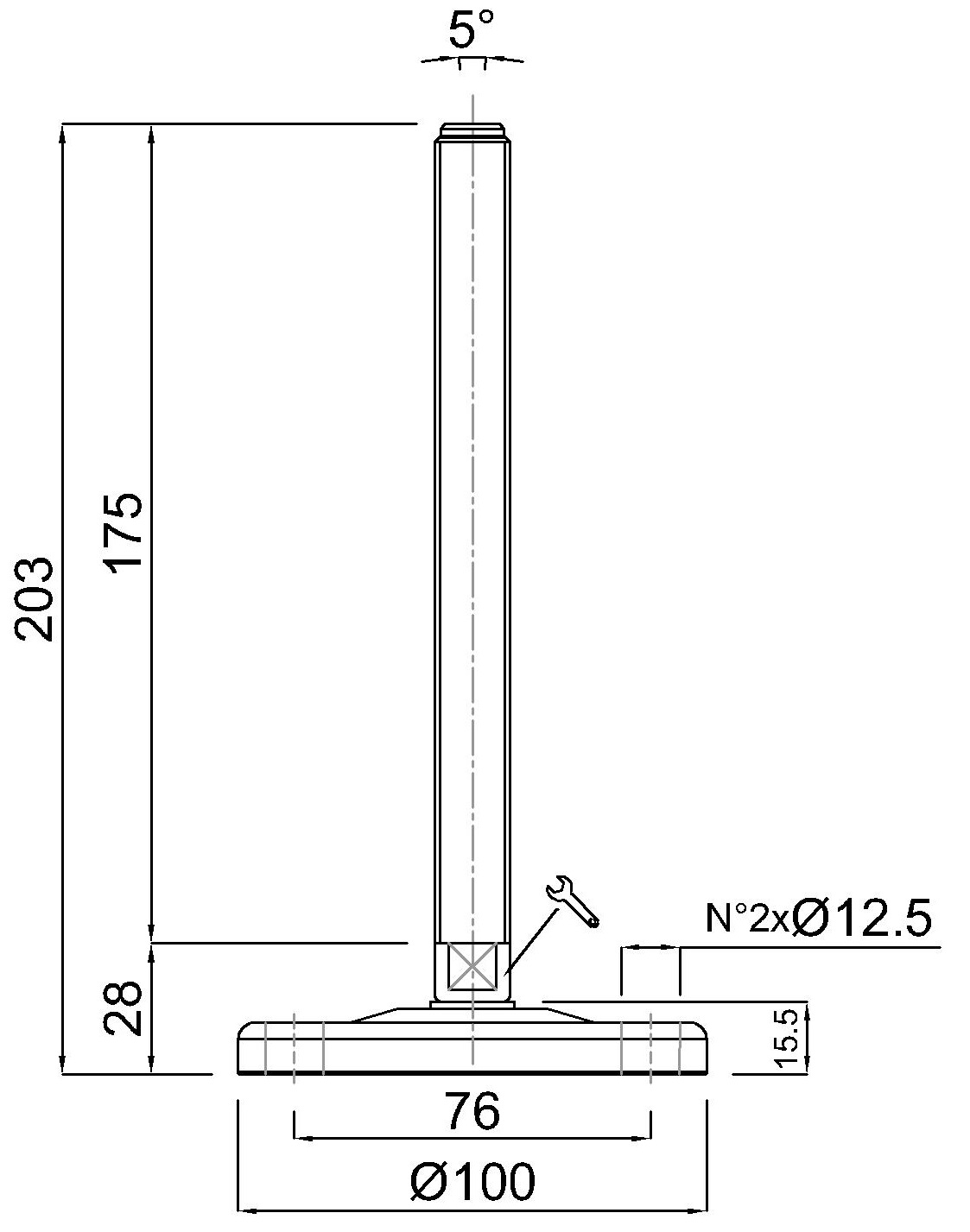

Levelling foot MASSIV Stainless Steel, Ø 100 mm, M20 x 175 mm, Stainlees steel, Total height 204 mm, Articulated screw 5°, Bore holes Ø 12,5 mm, Static load 30.000 N
