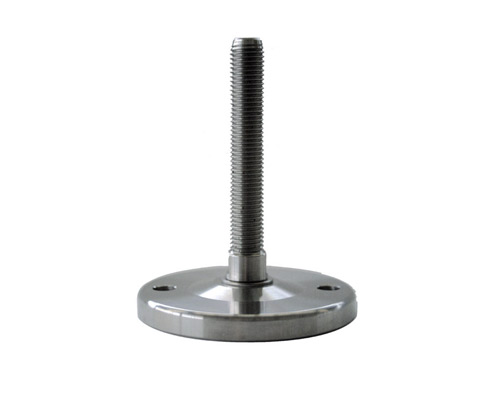

Levelling foot MASSIV Stainless Steel, Ø 100 mm, M16 x 100 mm, Drills
Introducing the MASSIV Stainless Steel Leveling Foot, featuring a robust 100 mm diameter and M16 x 100 mm spindle. Designed for high static loads up to 30,000 N, it ensures stability with a 5° articulated screw and two bore holes for secure mounting.
| Quantity | Price |
|---|---|
| From 1 |
€30.62*
|
| From 13 |
€28.77*
|
| From 25 |
€26.91*
|
| From 50 |
€25.61*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 91-110 |
| Ground fastening: | 2 mounting holes |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 16 |
| Spindle length (mm): | 100 |
| Balancing angle: | 5° |
| Hygiene: | No |

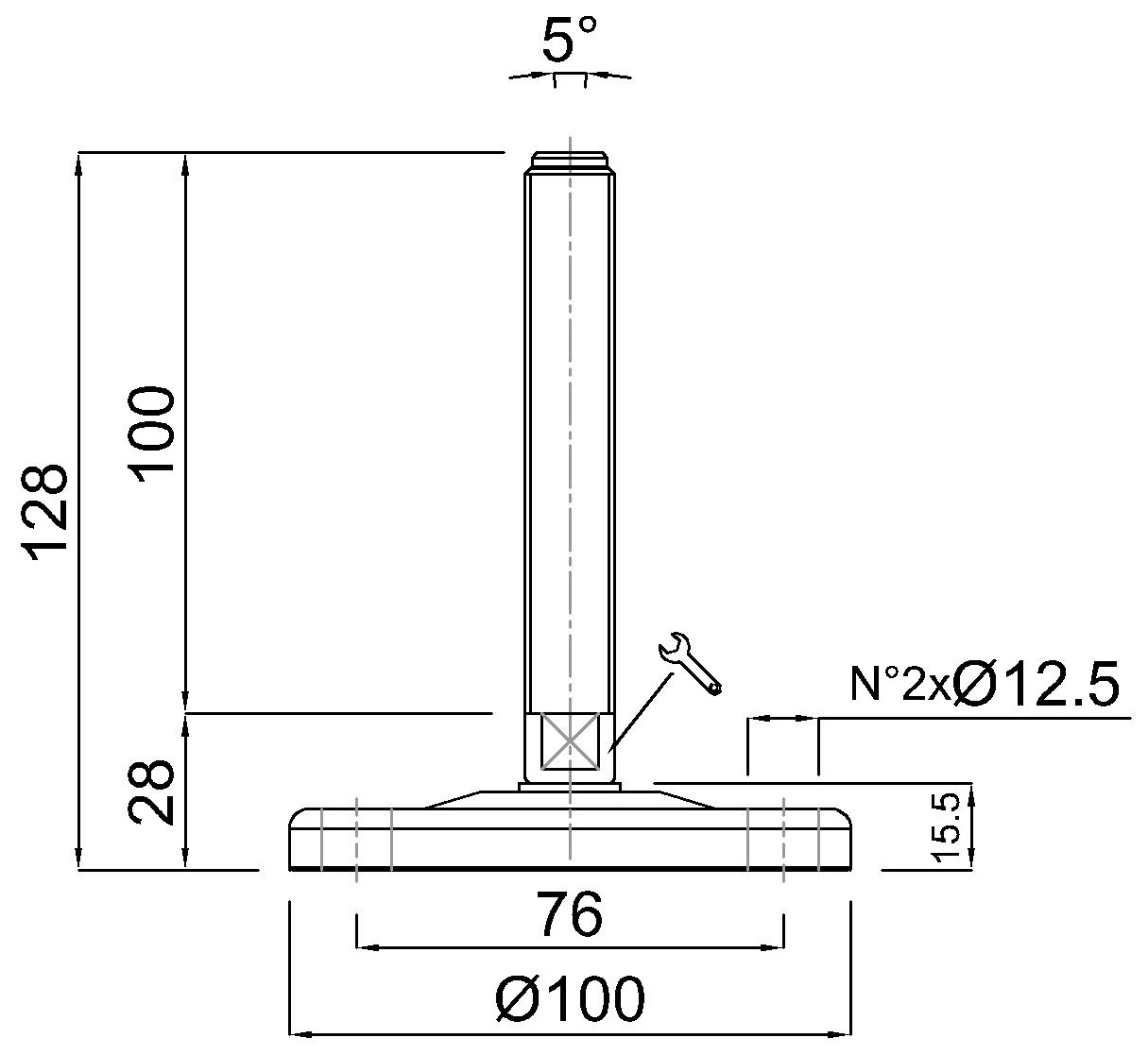

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
