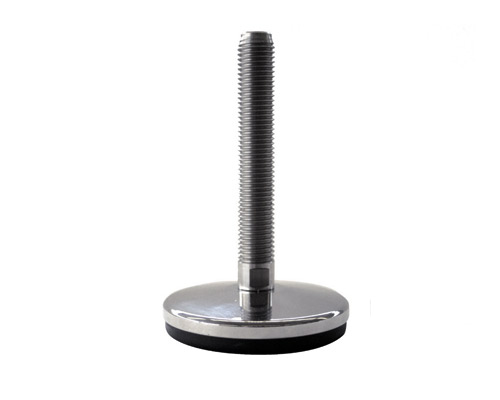

Levelling foot MASSIV Stainless Steel, Ø 100 mm, M16 x 175 mm, NBR
Discover the MASSIV stainless steel levelling foot designed for precision and durability. With a 100 mm diameter and a static load capacity of 30,000 N, it features an articulated screw for optimal adjustment and an anti-slip NBR base for stability. Perfect for heavy-duty applications.
| Quantity | Price |
|---|---|
| From 1 |
€32.93*
|
| From 13 |
€30.94*
|
| From 25 |
€28.94*
|
| From 50 |
€27.54*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 91-110 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 16 |
| Spindle length (mm): | 175 |
| Balancing angle: | 5° |

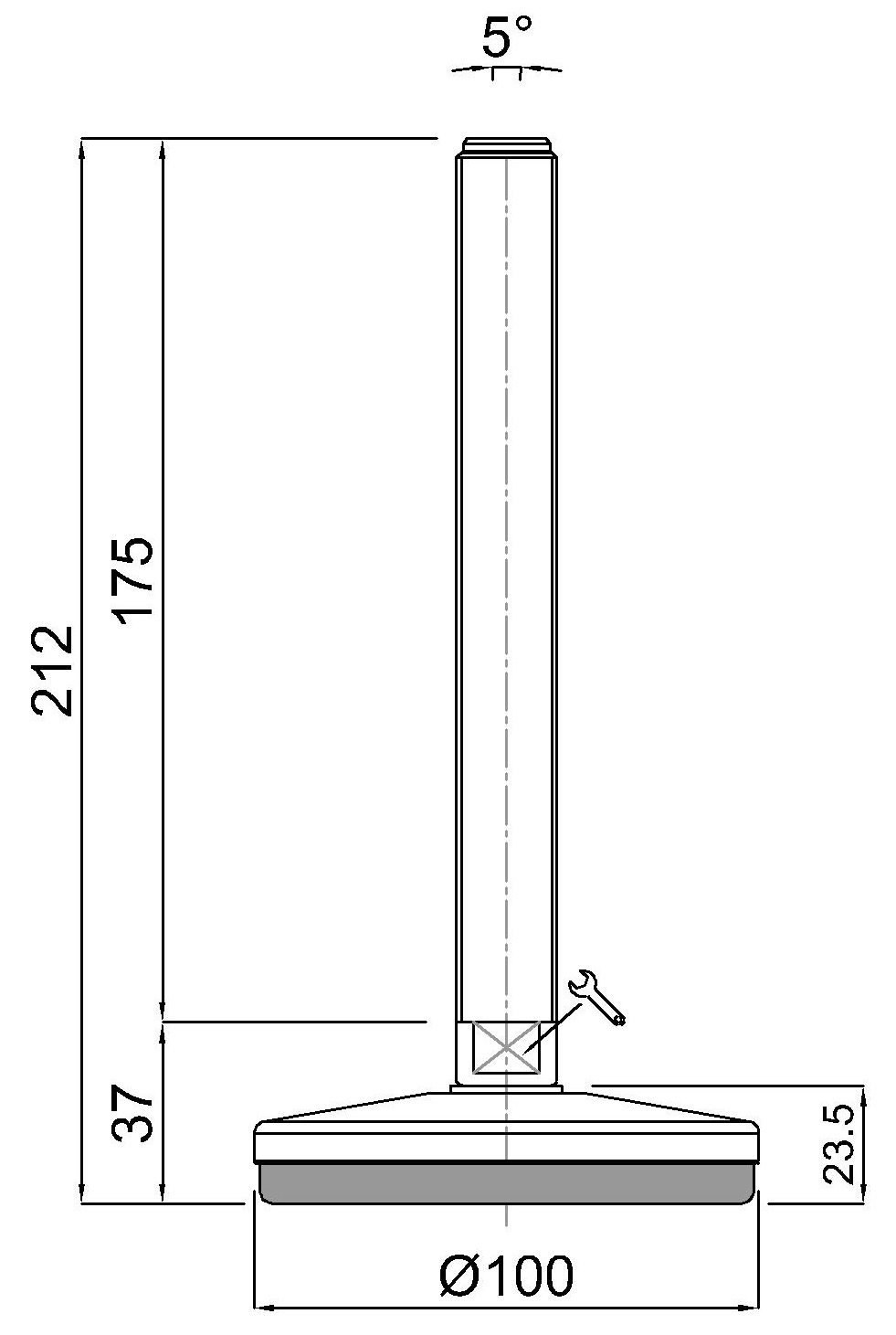

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
