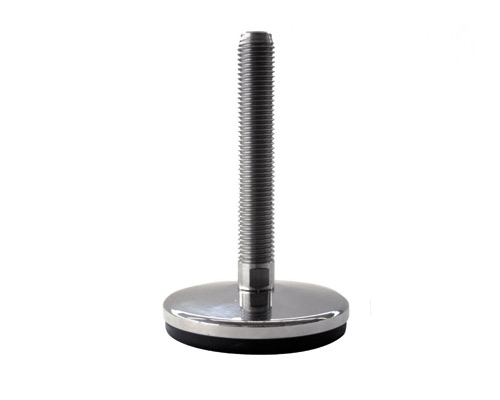

Levelling foot MASSIV Stainless Steel, Ø 100 mm, M16 x 75 mm, NBR
Discover the MASSIV Stainless Steel Levelling Foot, featuring a robust design with a 100 mm diameter and M16 x 75 mm spindle. Ideal for precise leveling, it supports a static load of 30,000 N and offers an articulated screw angle of 5°, ensuring optimum stability in demanding environments.
| Quantity | Price |
|---|---|
| From 1 |
€29.57*
|
| From 13 |
€27.78*
|
| From 25 |
€25.98*
|
| From 50 |
€24.73*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 91-110 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 16 |
| Spindle length (mm): | 75 |
| Balancing angle: | 5° |
Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
