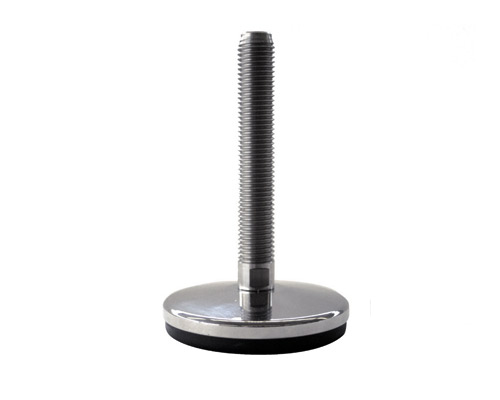

Levelling foot MASSIV Stainless Steel, Ø 100 mm, M20 x 150 mm, NBR
Discover the MASSIV Stainless Steel Levelling Foot, featuring a 100 mm diameter, M20 x 150 mm threaded spindle, and a robust static load capacity of 30,000 N. Engineered for precision, it offers a 5° articulated adjustment and durable NBR non-slip surface, ensuring stability and reliability in demanding environments.
| Quantity | Price |
|---|---|
| From 1 |
€34.96*
|
| From 13 |
€32.84*
|
| From 25 |
€30.73*
|
| From 50 |
€29.24*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 91-110 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 150 |
| Balancing angle: | 5° |

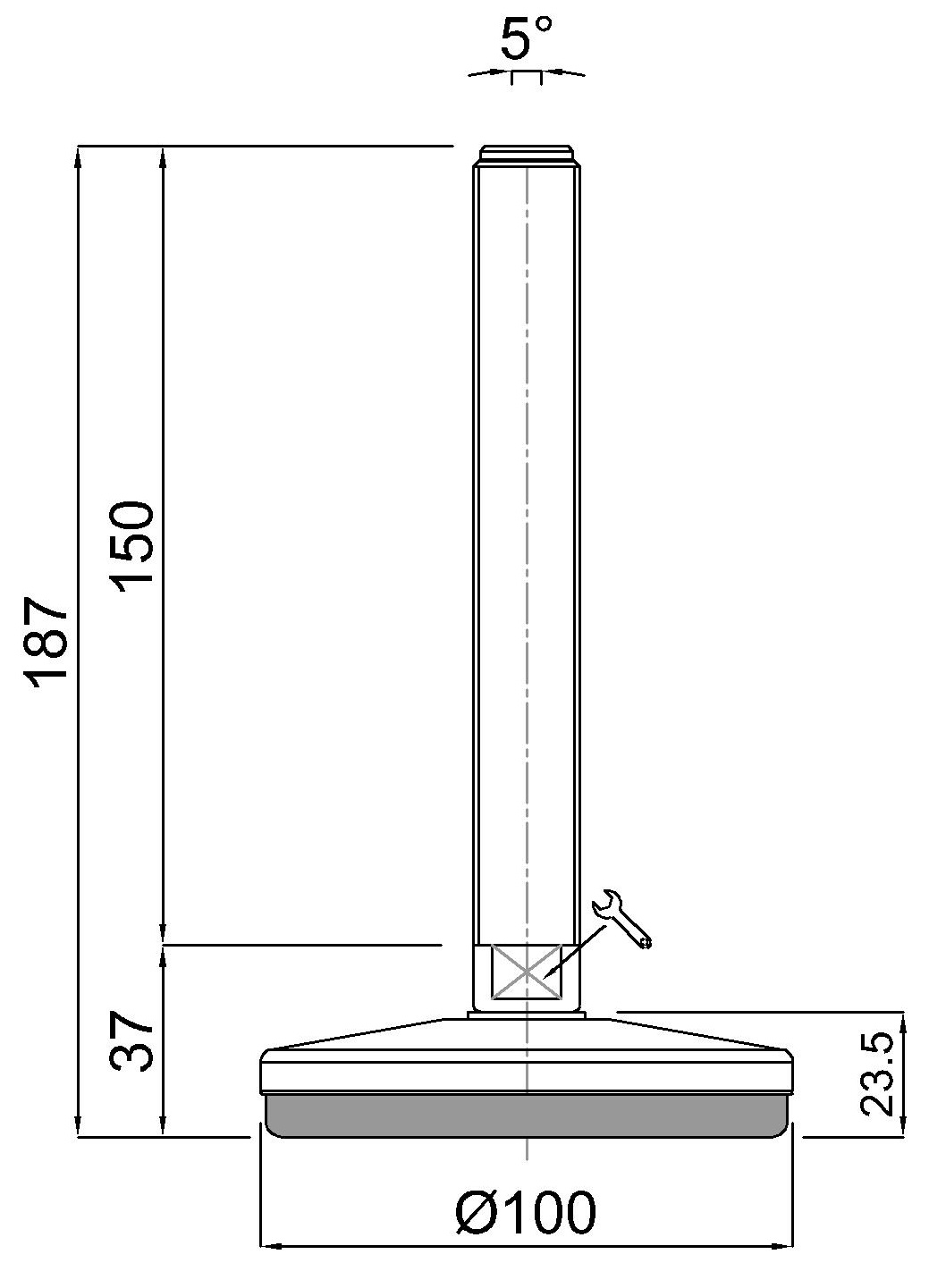

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
