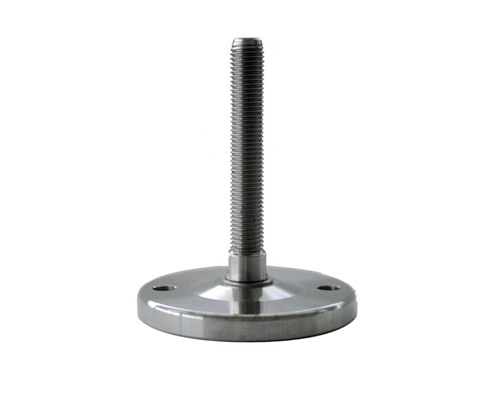

Levelling foot MASSIV Stainless Steel, Ø 100 mm, M16 x 75 mm, Drills, NBR
Optimize stability with the MASSIV Stainless Steel Levelling Foot. Featuring a robust design, articulated screw angle, and high static load capacity, it's perfect for precise adjustments in various technical applications.
| Quantity | Price |
|---|---|
| From 1 |
€33.94*
|
| From 13 |
€31.88*
|
| From 25 |
€29.83*
|
| From 50 |
€28.39*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 91-110 |
| Ground fastening: | 2 mounting holes |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 16 |
| Spindle length (mm): | 50 |
| Balancing angle: | 5° |

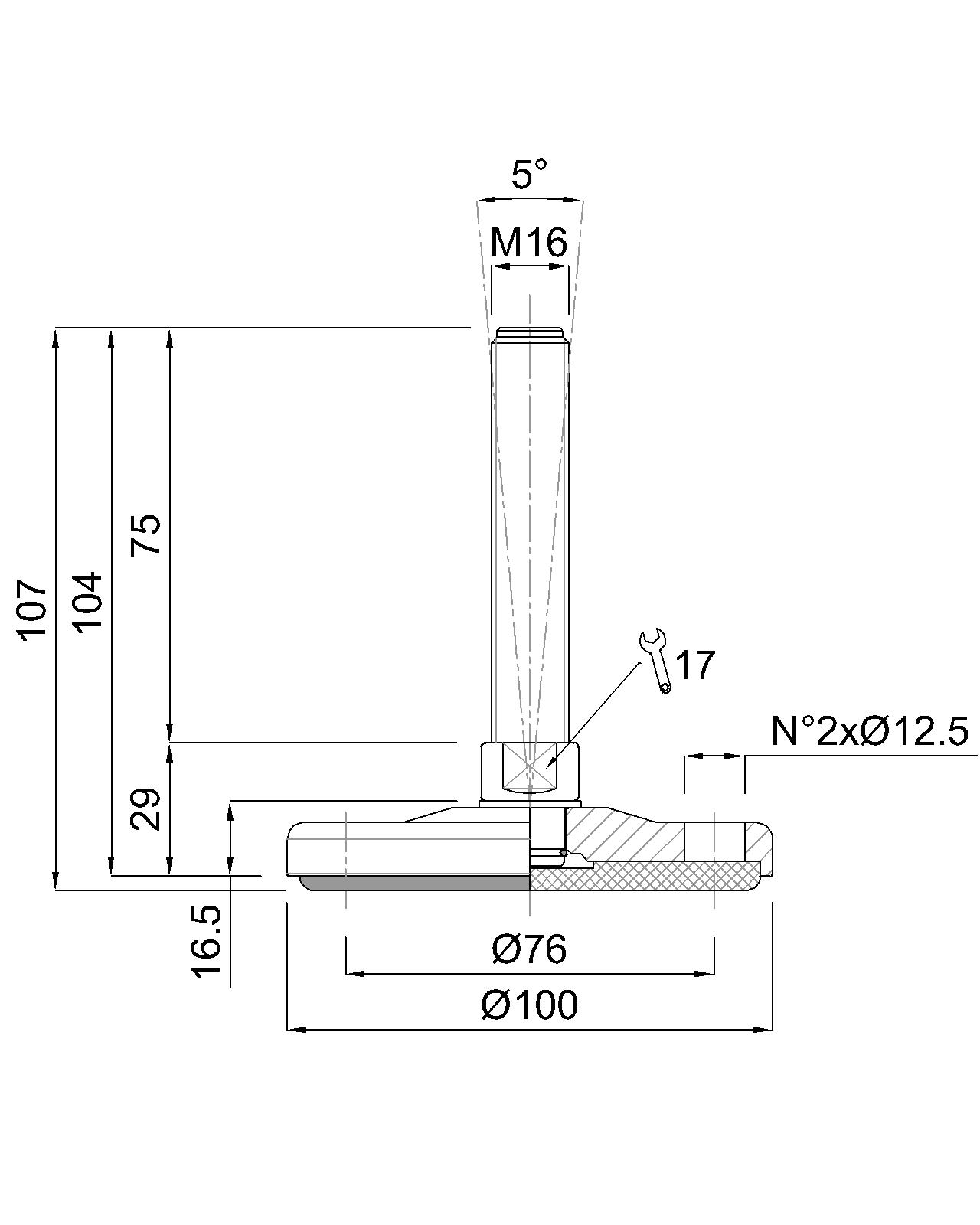

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
