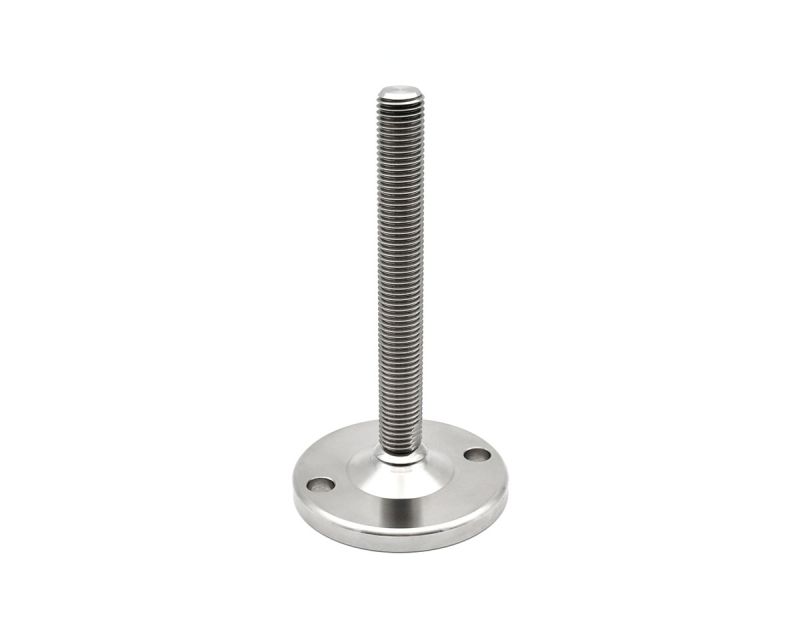

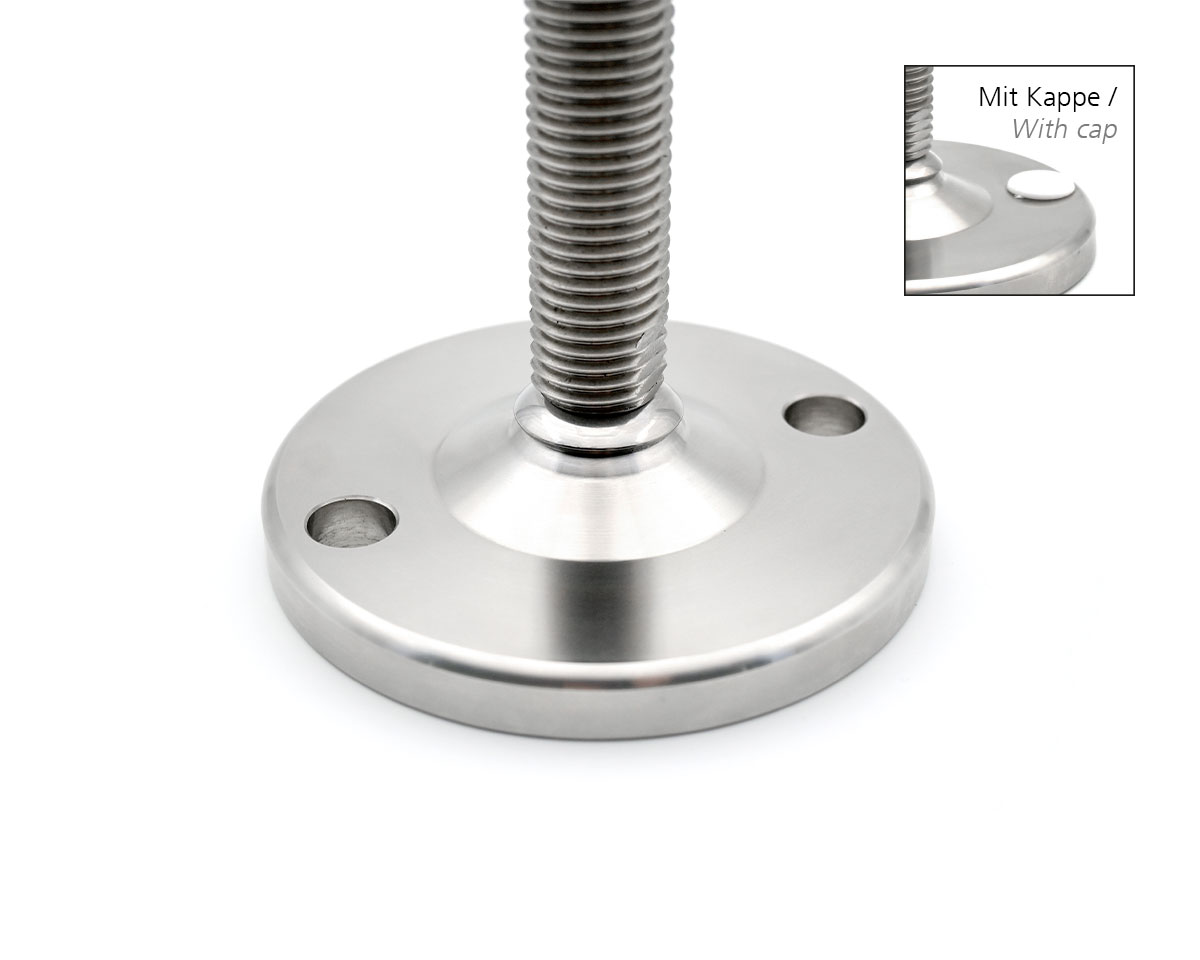

Levelling foot MASSIV Stainless Steel, Ø 100 mm, M20 x 150 mm, Drills, NBR Other dimensions available on request
EAN
4061408148899
Type
45820327F
Enhance stability with the MASSIV Stainless Steel Levelling Foot. Designed for robust support, it features a 100 mm diameter base, M20 x 150 mm threaded rod, and a static load capacity of 35,000 N.
| Quantity | Price |
|---|---|
| From 1 |
€41.96*
|
| From 13 |
€39.42*
|
| From 25 |
€36.87*
|
| From 50 |
€35.09*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 91-110 |
| Ground fastening: | 2 mounting holes |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 150 |
| Balancing angle: | 15° |
| Hygiene: | No |
Technical drawing
Levelling foot MASSIV Stainless Steel, Ø 100 mm, M20 x 150 mm, Stainlees steel, Total height 189 mm, Articulated screw 15°, Bore holes Ø 12,5 mm, Antislip NBR black, Static load 35.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
