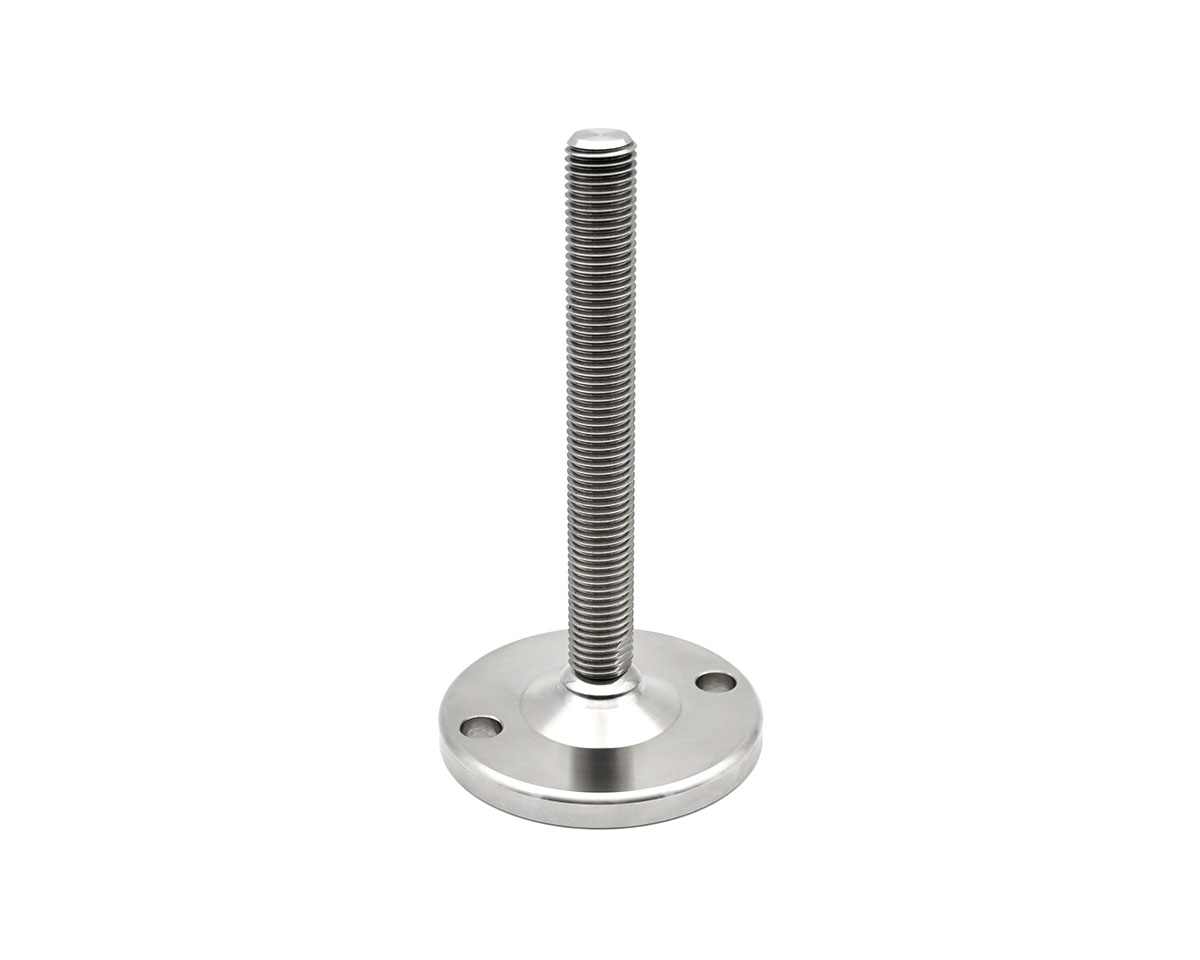

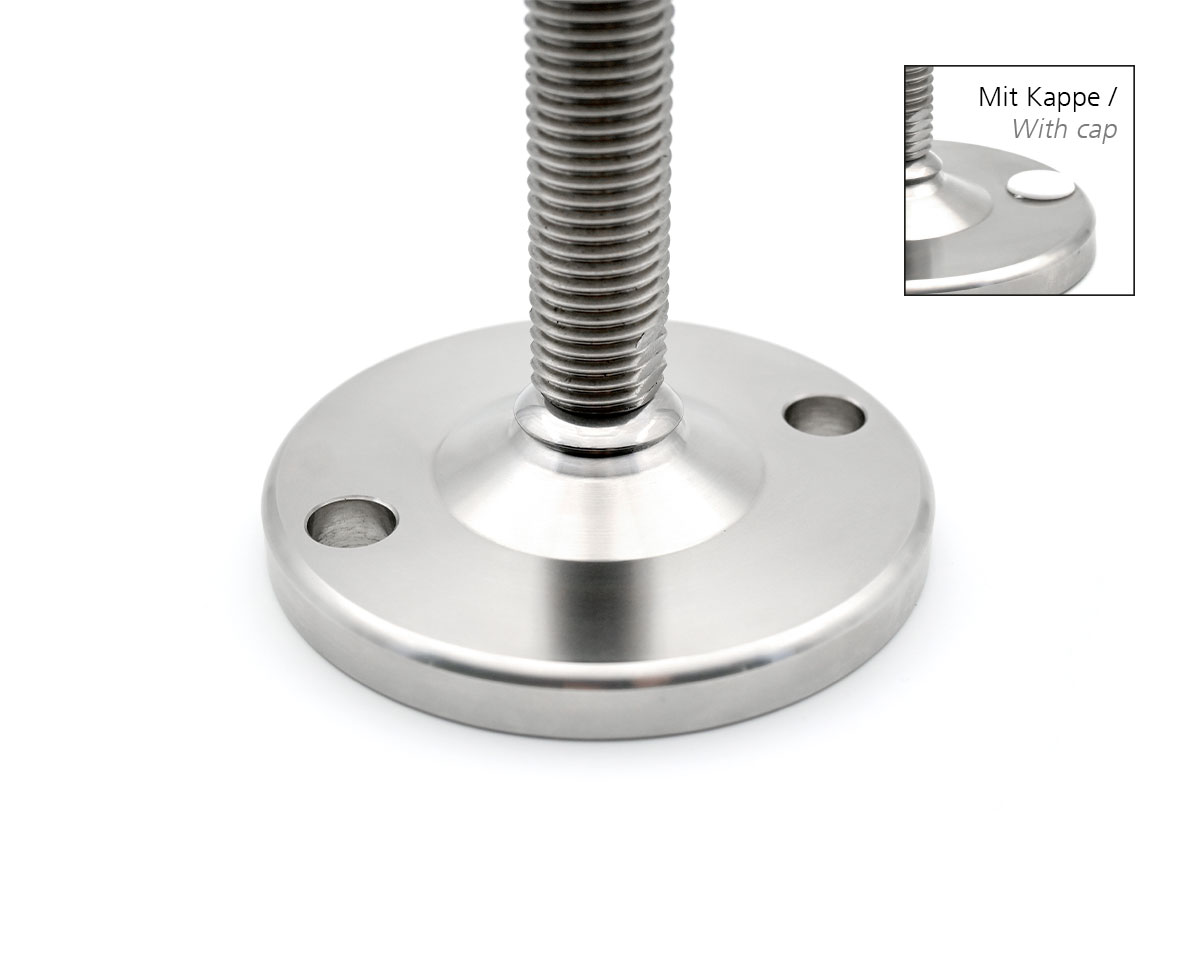

Levelling foot MASSIV Stainless Steel, Ø 150 mm, M30 x 150 mm, Drills, NBR
Optimize your machinery's stability with the MASSIV Stainless Steel Levelling Foot. Designed for robust support, it accommodates a static load of 50,000 N, ensuring reliability in various applications.
| Quantity | Price |
|---|---|
| From 1 |
€95.87*
|
| From 13 |
€90.06*
|
| From 25 |
€84.25*
|
| From 50 |
€80.18*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 131-230 |
| Ground fastening: | 2 mounting holes |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 30 |
| Spindle length (mm): | 150 |
| Balancing angle: | 15° |
| Hygiene: | No |

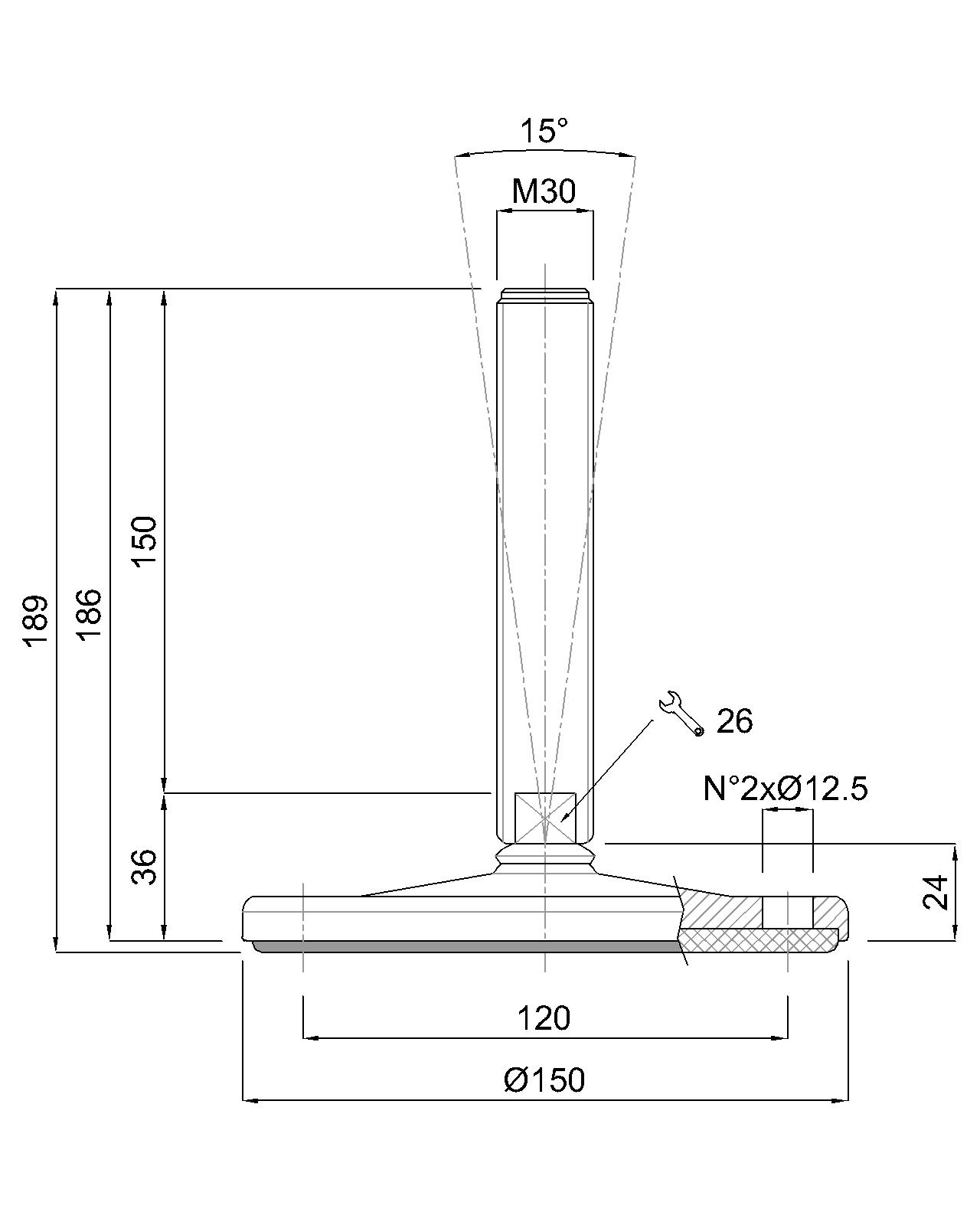

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
