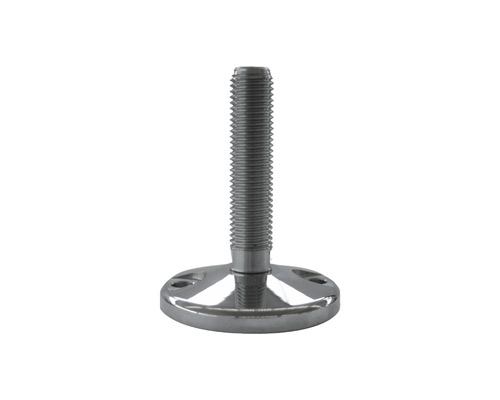

Levelling foot MASSIV Stainless Steel, Ø 120 mm, M30 x 250 mm, Drills
EAN
4061408118014
Type
45812424/30
Optimize your equipment stability with the MASSIV Stainless Steel Levelling Foot. With a static load capacity of 60,000 N and a total height of 286 mm, it ensures robust support for various applications.
| Quantity | Price |
|---|---|
| From 1 |
€73.18*
|
| From 13 |
€68.74*
|
| From 25 |
€64.31*
|
| From 50 |
€61.20*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 111-130 |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 30 |
| Spindle length (mm): | 250 |
| Balancing angle: | 0° |
| Hygiene: | No |
Technical drawing
Levelling foot MASSIV Stainless Steel, Ø 120 mm, M30 x 250 mm, Stainlees steel, Total height 286 mm, Bore holes Ø 12,5 mm, Static load 60.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
