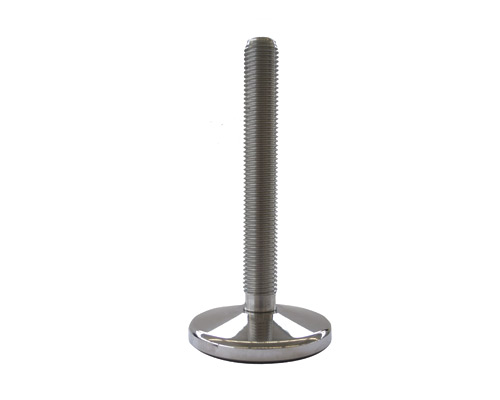

Levelling foot MASSIV Stainless Steel, Ø 120 mm, M24 x 150 mm, NBR
EAN
4061408081189
Type
45811857
Discover the MASSIV stainless steel leveling foot, featuring a 120 mm diameter and M24 x 150 mm spindle. With a static load capacity of 50,000 N and robust NBR anti-slip design, it ensures stability in demanding industrial applications.
| Quantity | Price |
|---|---|
| From 1 |
€66.18*
|
| From 13 |
€62.17*
|
| From 25 |
€58.16*
|
| From 50 |
€55.35*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 111-130 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 24 |
| Spindle length (mm): | 150 |
| Balancing angle: | 0° |

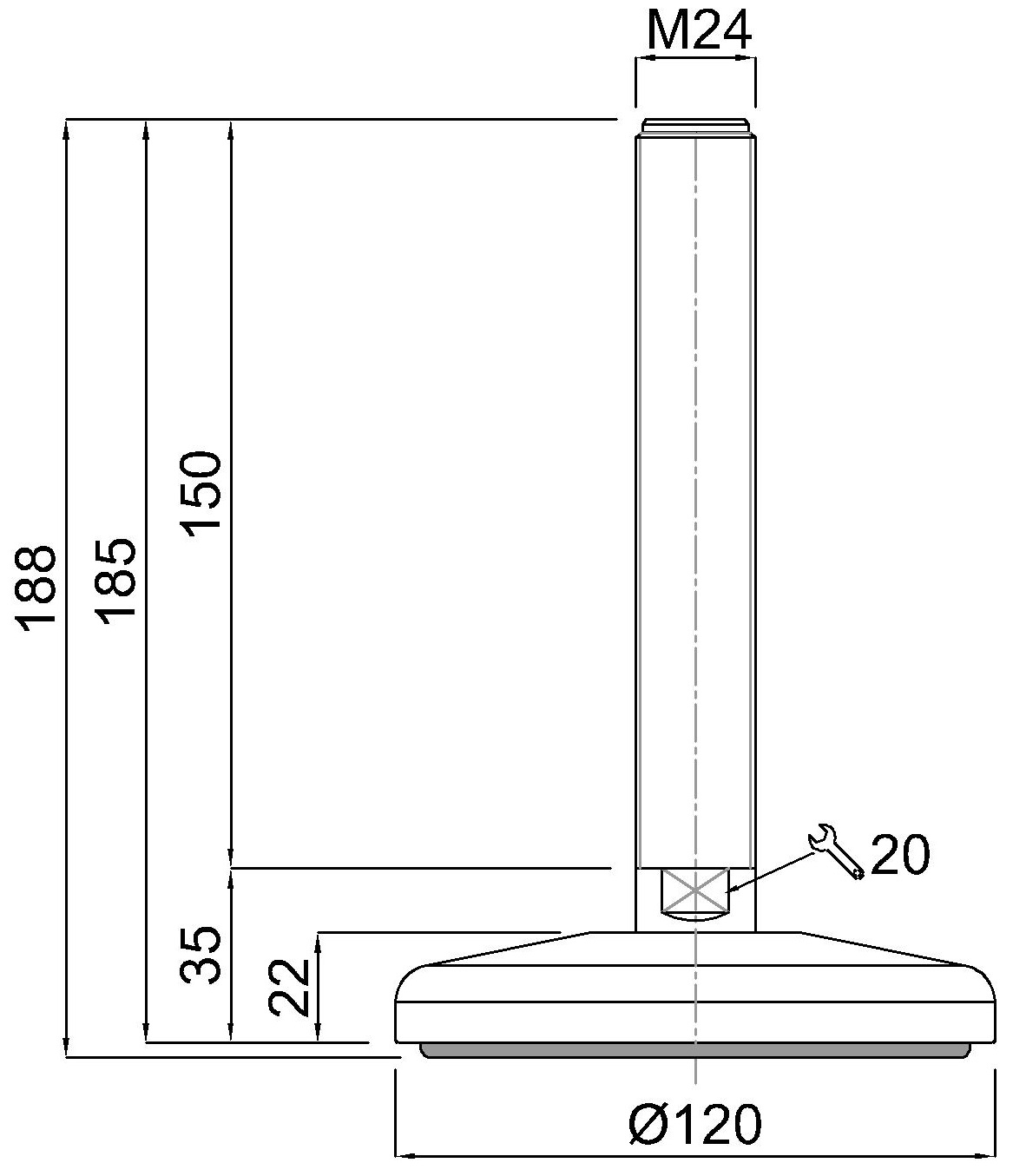

Technical drawing
Levelling foot MASSIV Stainless Steel, Ø 120 mm, M24 x 150 mm, Stainlees steel, Total height 188 mm, Antislip NBR black, Static load 50.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
