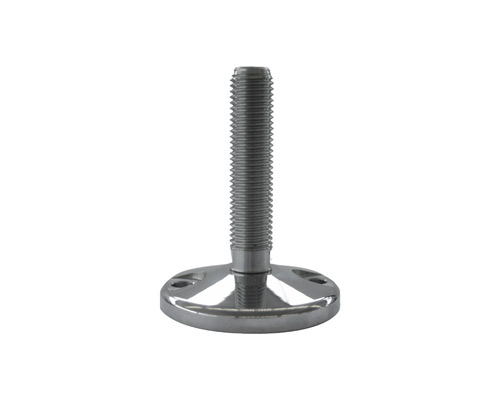

Levelling foot MASSIV Stainless Steel, Ø 100 mm, M16 x 150 mm, Drills
EAN
4061408018468
Type
45812136
Discover the MASSIV Stainless Steel Levelling Foot, featuring a robust 100 mm diameter base and M16 x 150 mm spindle. With a static load capacity of 35,000 N, it ensures durable support for your applications.
| Quantity | Price |
|---|---|
| From 1 |
€51.22*
|
| From 13 |
€48.11*
|
| From 25 |
€45.01*
|
| From 50 |
€42.84*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 91-110 |
| Ground fastening: | 2 mounting holes |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 16 |
| Spindle length (mm): | 150 |
| Balancing angle: | 0° |
| Hygiene: | No |
Technical drawing
Levelling foot MASSIV Stainless Steel, Ø 100 mm, M16 x 150 mm, Stainlees steel, Total height 183 mm, Bore holes Ø 12,5 mm, Static load 35.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
