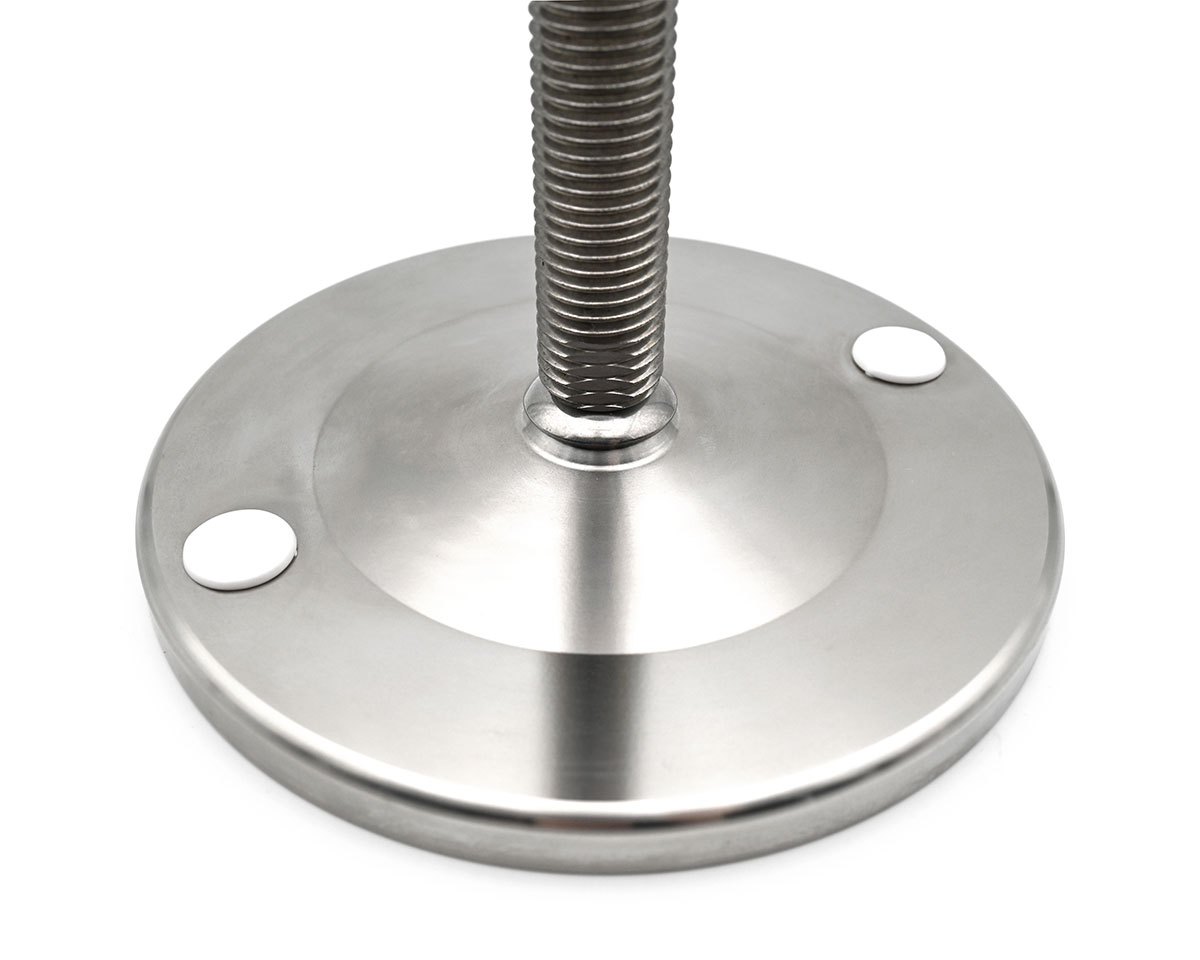

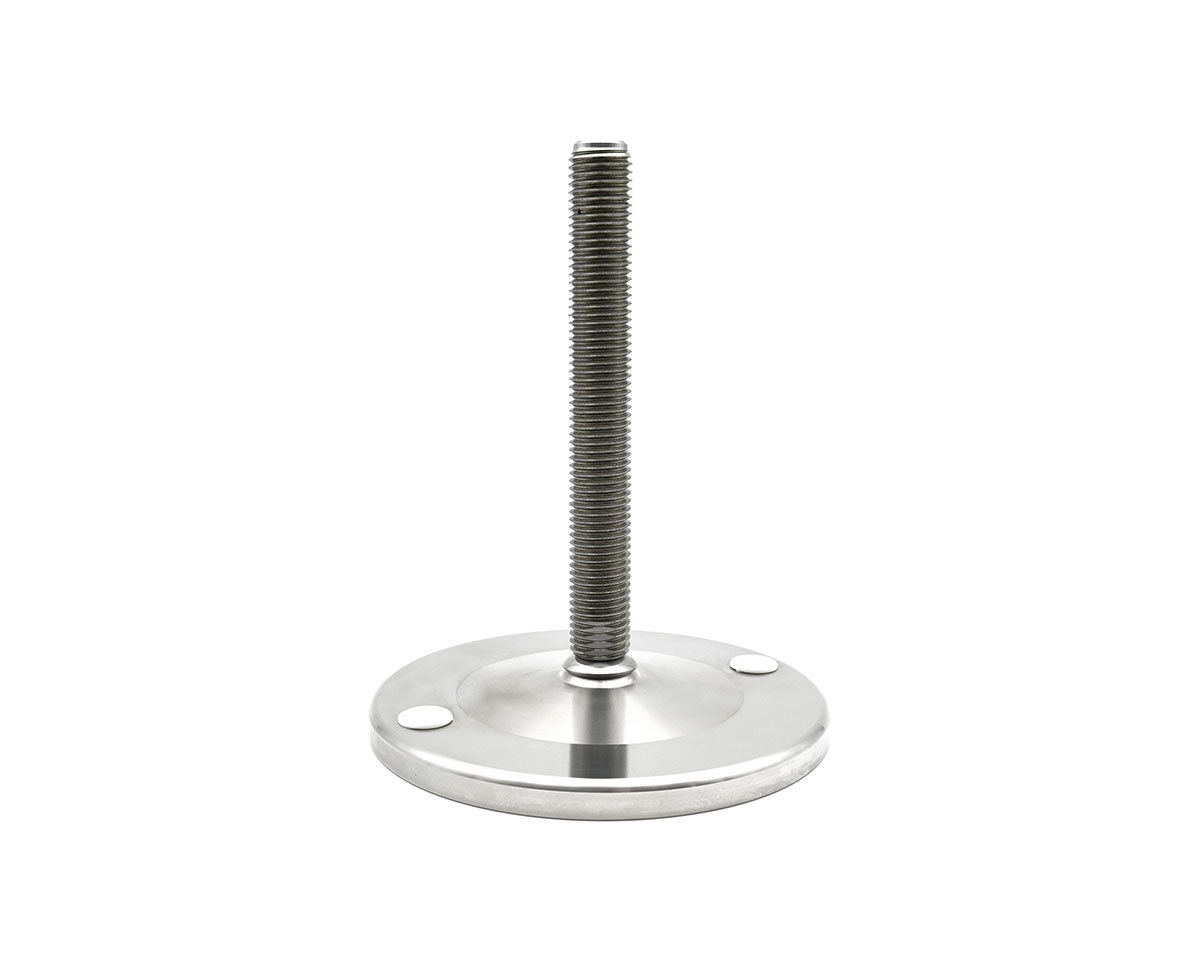

Levelling foot MASSIV Stainless Steel, Ø 120 mm, M20 x 150 mm, Drills
EAN
4061408141777
Type
45820526F
The MASSIV Stainless Steel levelling foot features a robust design with a 120 mm plate, M20 x 150 mm spindle, and a 35,000 N static load capacity, ensuring exceptional stability and precision for engineering applications.
| Quantity | Price |
|---|---|
| From 1 |
€50.36*
|
| From 13 |
€47.31*
|
| From 25 |
€44.25*
|
| From 50 |
€42.12*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 111-130 |
| Ground fastening: | 2 mounting holes |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 150 |
| Balancing angle: | 15° |
| Hygiene: | No |
Technical drawing
Levelling foot MASSIV Stainless Steel, Ø 120 mm, M20 x 150 mm, Stainlees steel, Total height 186 mm, Articulated screw 15°, Bore holes Ø 12,5 mm, Static load 35.000 N
