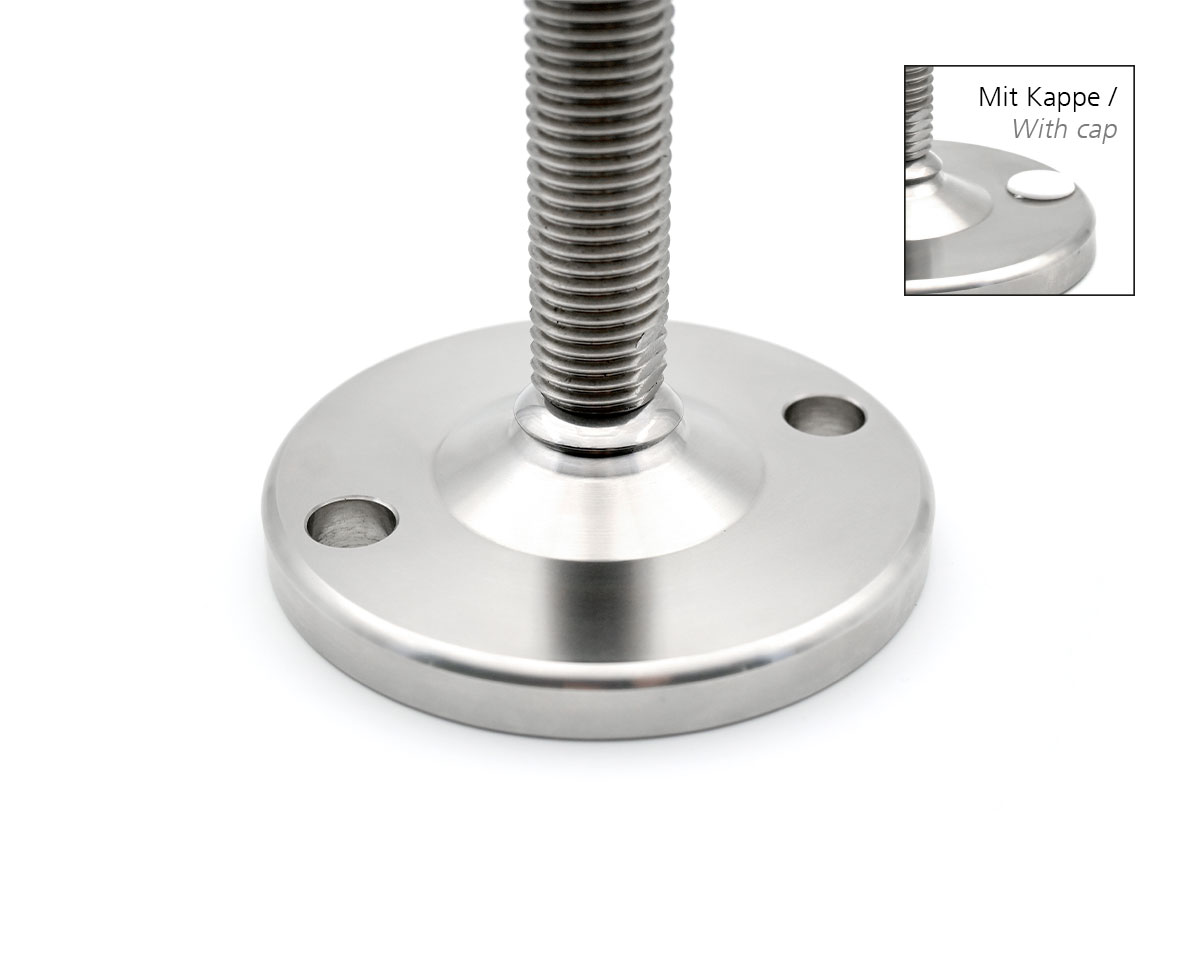

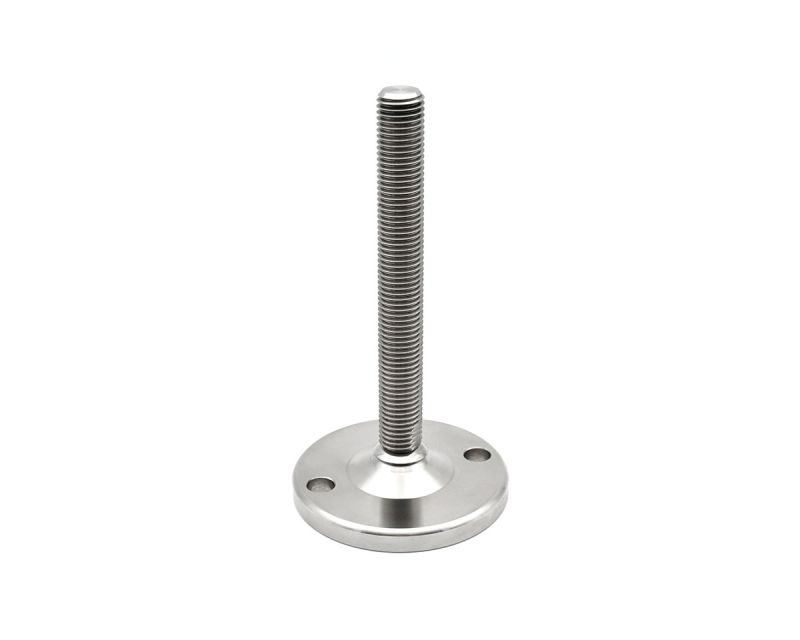

Levelling foot MASSIV Stainless Steel, Ø 150 mm, M30 x 200 mm, Drills
EAN
4061408141630
Type
45820768F
Discover the MASSIV Stainless Steel Levelling Foot, designed for optimal stability and precision. With a static load capacity of 50,000 N and adjustable angles, it ensures robust performance in demanding applications.
| Quantity | Price |
|---|---|
| From 1 |
€93.82*
|
| From 13 |
€88.13*
|
| From 25 |
€82.45*
|
| From 50 |
€78.47*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 131-230 |
| Ground fastening: | 2 mounting holes |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 30 |
| Spindle length (mm): | 200 |
| Balancing angle: | 15° |
| Hygiene: | No |
Technical drawing
Levelling foot MASSIV Stainless Steel, Ø 150 mm, M30 x 200 mm, Stainlees steel, Total height 236 mm, Articulated screw 15°, Bore holes Ø 12,5 mm, Static load 50.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
