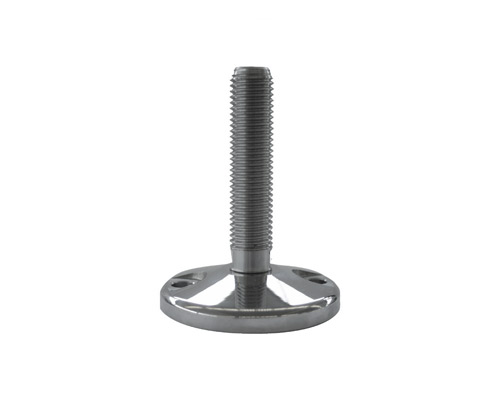

Levelling foot MASSIV Stainless Steel, Ø 100 mm, M20 x 250 mm, Drills
Optimize stability with the MASSIV Levelling Foot made of stainless steel. With a 100 mm diameter and a static load capacity of 40,000 N, it ensures robust support for various applications.
| Quantity | Price |
|---|---|
| From 1 |
€58.58*
|
| From 13 |
€55.03*
|
| From 25 |
€51.48*
|
| From 50 |
€48.99*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 91-110 |
| Ground fastening: | 2 mounting holes |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 250 |
| Balancing angle: | 0° |
| Hygiene: | No |

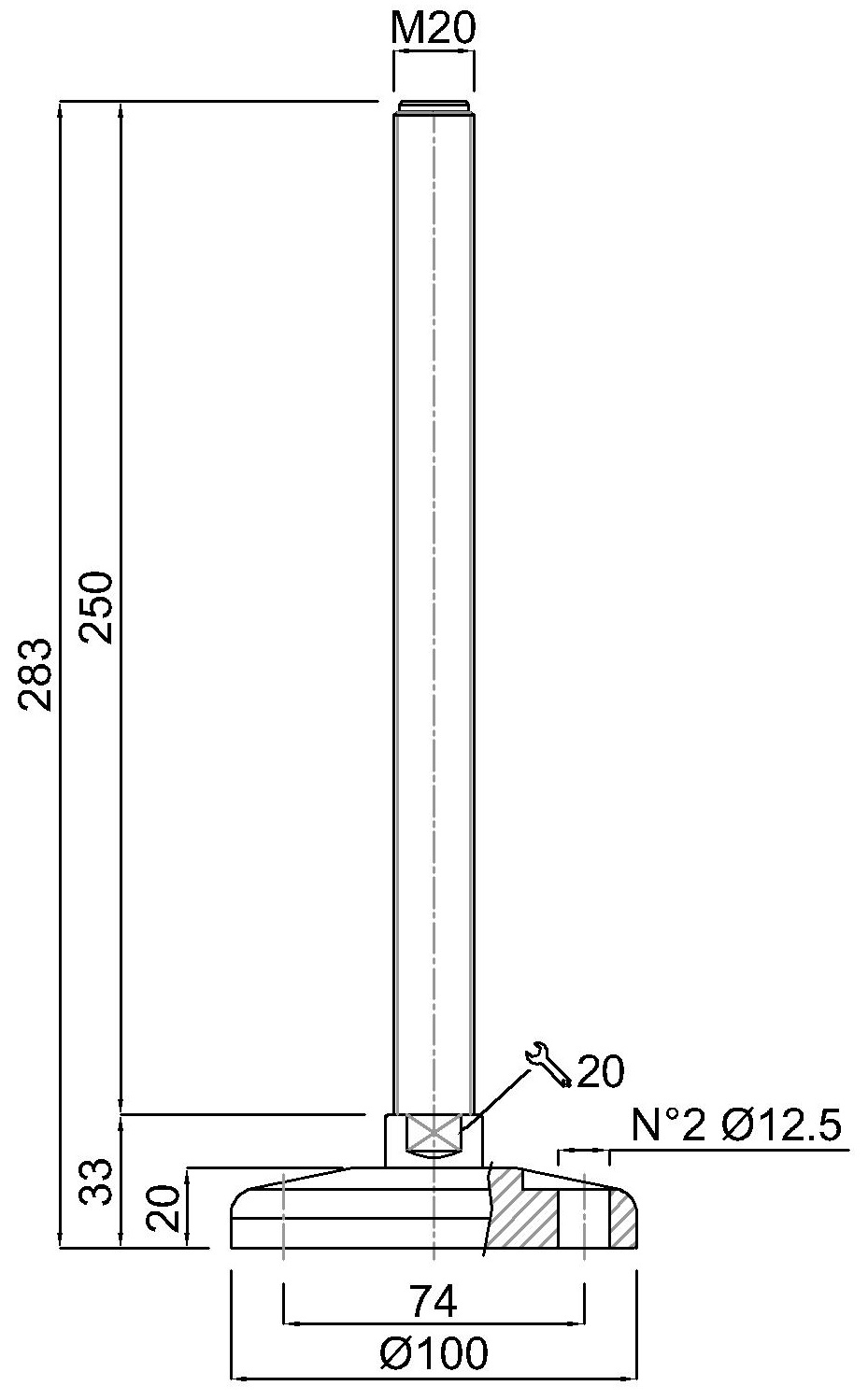

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
