Levelling foot MASSIV Stainless Steel, Ø 80 mm, M20 x 175 mm, NBR
Discover the MASSIV Stainless Steel Levelling Foot, engineered for exceptional stability with a static load capacity of 30,000 N. Its durable design features an articulated screw for a 30° adjustment and slip-resistant NBR. Ideal for precision applications.
| Quantity | Price |
|---|---|
| From 1 |
€38.36*
|
| From 13 |
€36.04*
|
| From 25 |
€33.71*
|
| From 50 |
€32.09*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 71-90 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 175 |
| Balancing angle: | 30° |

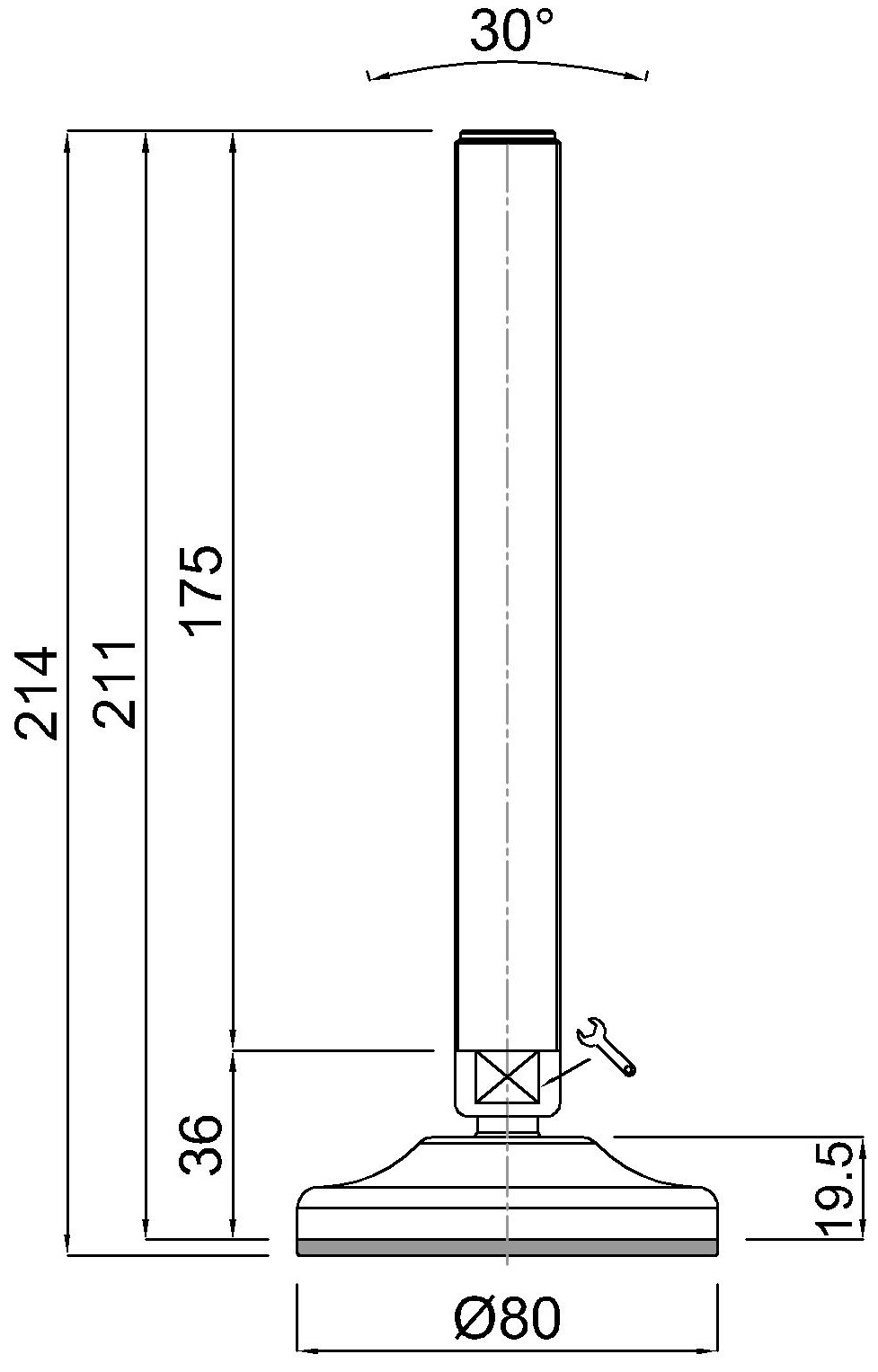

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
