Levelling foot MASSIV Stainless Steel, Ø 80 mm, M20 x 150 mm, NBR
Discover the MASSIV Levelling Foot, crafted from durable stainless steel, featuring a robust 80 mm diameter and a static load capacity of 30,000 N. Designed for precision with a 30° articulated screw and an anti-slip NBR base, it ensures stability in demanding applications. Ideal for engineers and manufacturers seeking reliability and excellence.
| Quantity | Price |
|---|---|
| From 1 |
€37.98*
|
| From 13 |
€35.68*
|
| From 25 |
€33.38*
|
| From 50 |
€31.77*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 71-90 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 150 |
| Balancing angle: | 30° |

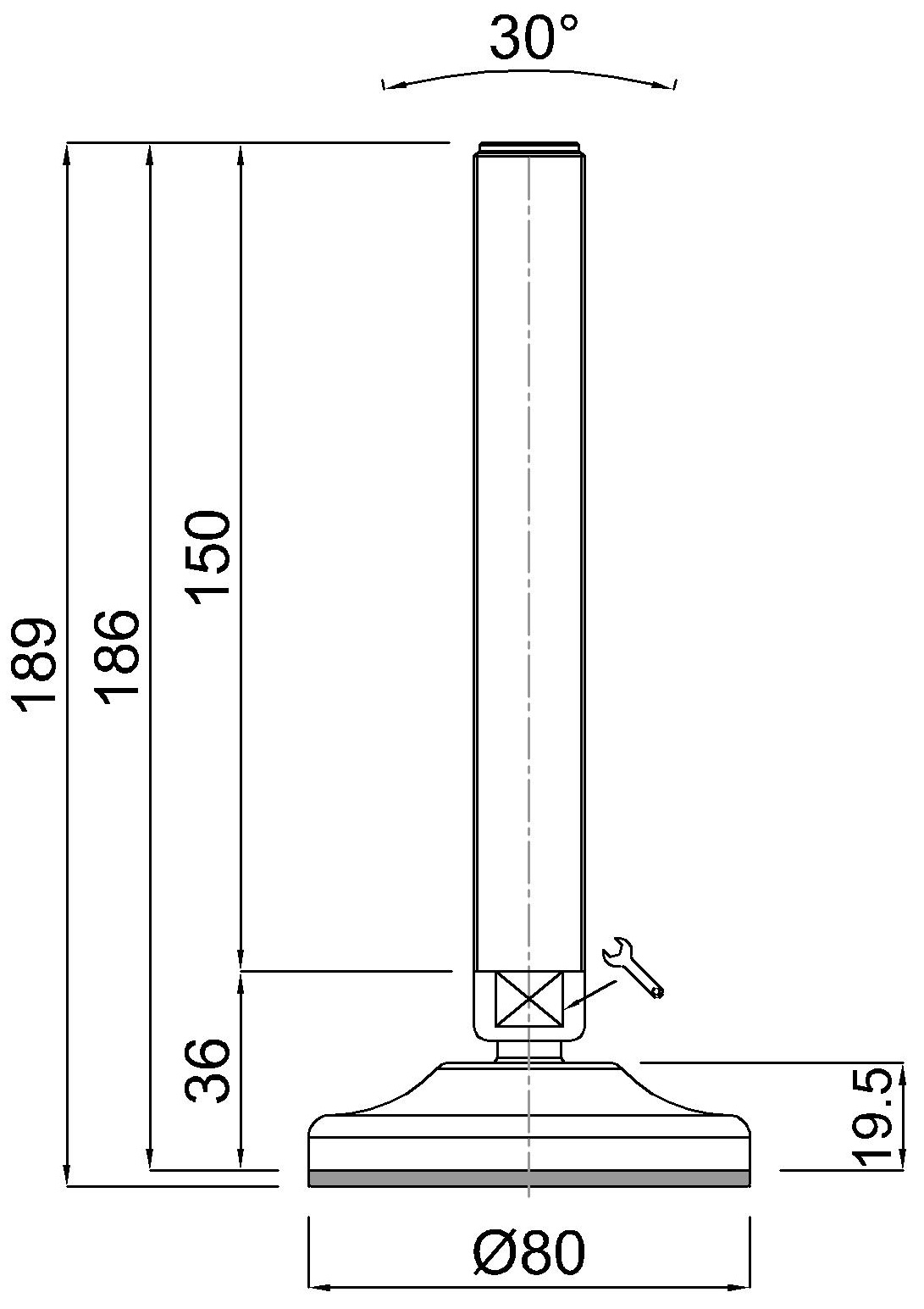

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
