Levelling foot MASSIV Stainless Steel, Ø 80 mm, M16 x 150 mm, NBR
Discover the MASSIV stainless steel leveling foot, designed for demand. With a 30,000 N static load capacity, articulated screw angle of 30°, and a durable NBR anti-slip surface, it ensures stability and precision in any industrial application.
| Quantity | Price |
|---|---|
| From 1 |
€37.34*
|
| From 13 |
€35.08*
|
| From 25 |
€32.81*
|
| From 50 |
€31.23*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 71-90 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 16 |
| Spindle length (mm): | 150 |
| Balancing angle: | 30° |

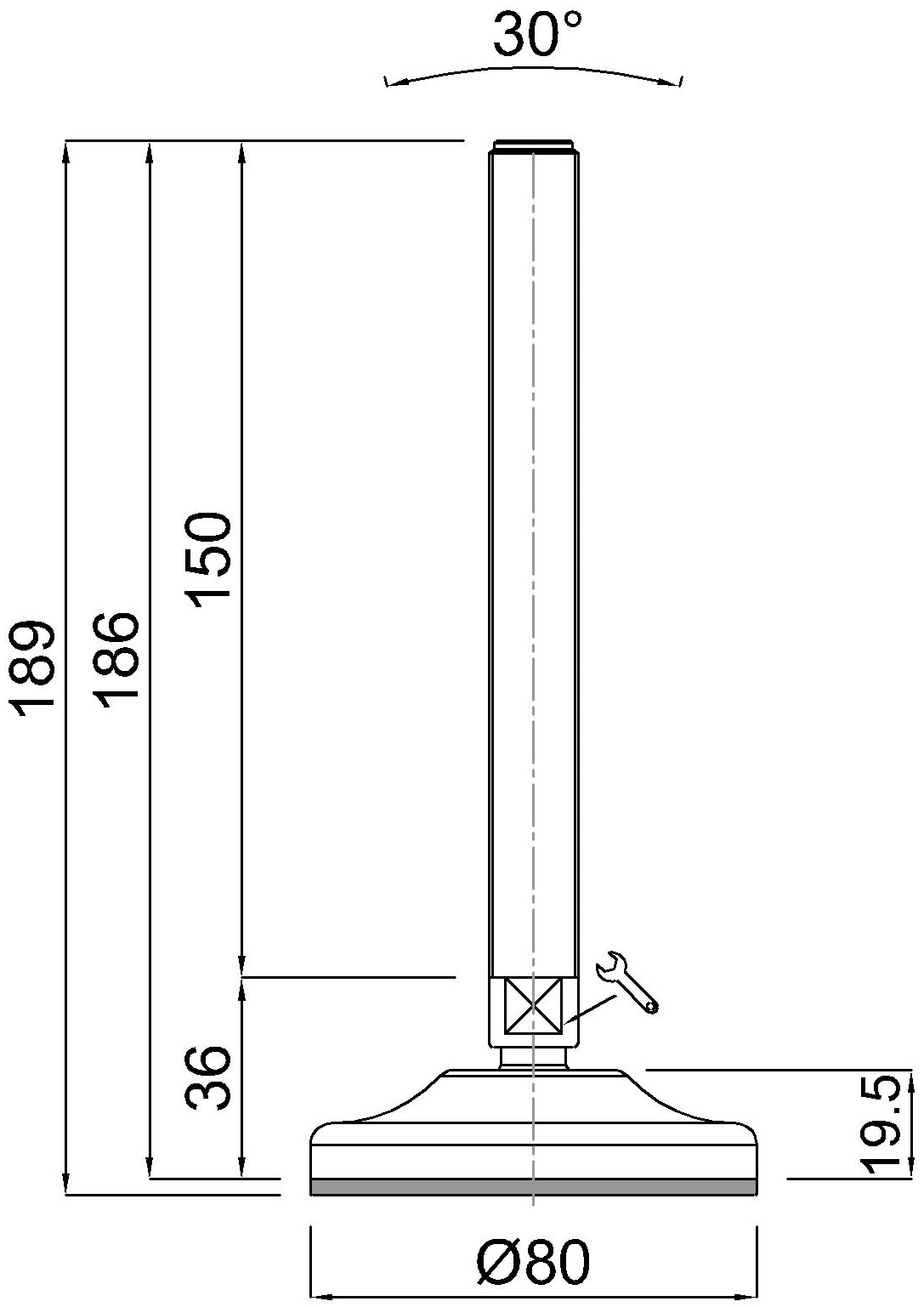

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
