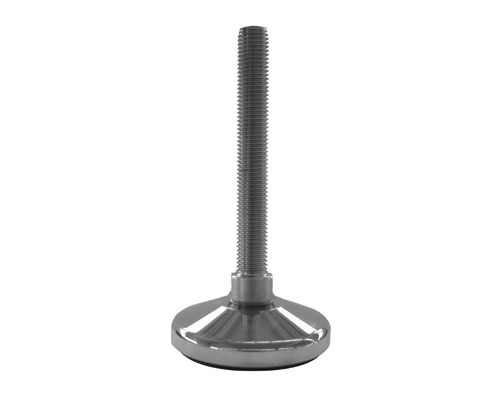

Levelling foot MASSIV Stainless Steel, Ø 80 mm, M16 x 100 mm
Discover the MASSIV Stainless Steel Levelling Foot, featuring an 80 mm diameter and M16 x 100 mm thread. With a 133 mm total height and a static load capacity of 30,000 N, it ensures reliable stability and precise adjustment for your engineering applications.
| Quantity | Price |
|---|---|
| From 1 |
€34.22*
|
| From 13 |
€32.15*
|
| From 25 |
€30.07*
|
| From 50 |
€28.62*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 71-90 |
| Vibration damping: | No |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 16 |
| Spindle length (mm): | 100 |
| Balancing angle: | 10° |
| Hygiene: | No |

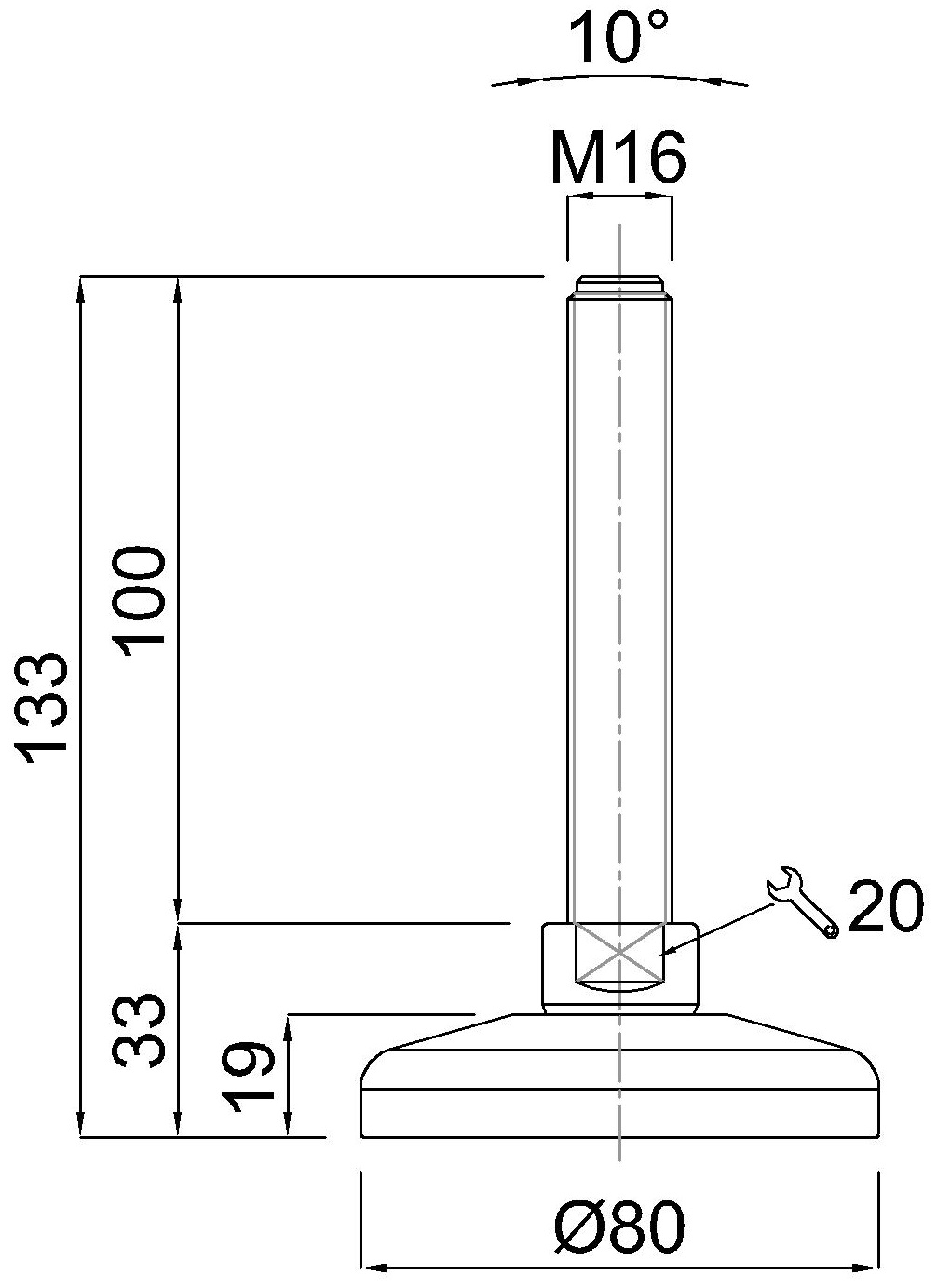

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
