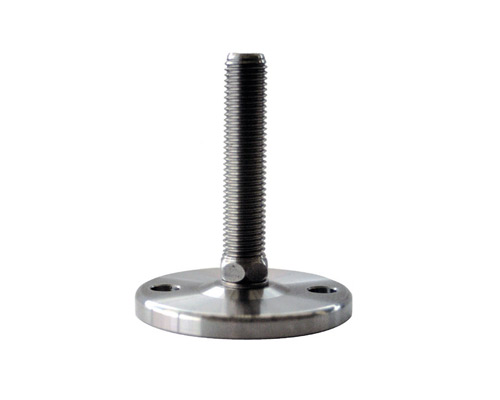

Levelling foot MASSIV Stainless Steel, Ø 80 mm, M14 x 50 mm, Drills, NBR
EAN
4061408095605
Type
45815200/G
Discover the MASSIV Levelling Foot made of high-quality stainless steel, featuring a robust 80 mm diameter and M14 x 50 mm spindle. With an impressive static load capacity of 20,000 N, this foot provides unparalleled stability and precision, thanks to its articulated screw design and antislip NBR material. Ideal for diverse applications, ensuring reliable support even in challenging environments.
| Quantity | Price |
|---|---|
| From 1 |
€23.88*
|
| From 13 |
€22.43*
|
| From 25 |
€20.98*
|
| From 50 |
€19.97*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 71-90 |
| Ground fastening: | 2 mounting holes |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 14 |
| Spindle length (mm): | 50 |
| Balancing angle: | 5° |
Technical drawing
Levelling foot MASSIV Stainless Steel, Ø 80 mm, M14 x 50 mm, Stainlees steel, Total height 73 mm, Articulated screw 5°, Bore holes Ø 10,5 mm, Antislip NBR black, Static load 20.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
