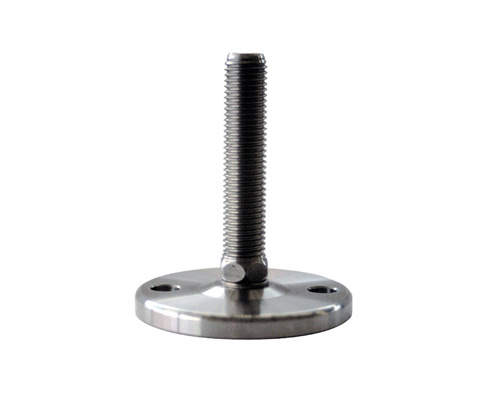

Levelling foot MASSIV Stainless Steel, Ø 80 mm, M20 x 125 mm, Drills, NBR
EAN
4061408067671
Type
45815207/G
The MASSIV Leveling Foot in stainless steel features a robust design with an 80 mm diameter, M20 x 125 mm spindle, and a static load capacity of 25,000 N. Ideal for professionals seeking stability and precision in industrial applications.
| Quantity | Price |
|---|---|
| From 1 |
€28.26*
|
| From 13 |
€26.55*
|
| From 25 |
€24.84*
|
| From 50 |
€23.64*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 71-90 |
| Ground fastening: | 2 mounting holes |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 125 |
| Balancing angle: | 5° |
Technical drawing
Levelling foot MASSIV Stainless Steel, Ø 80 mm, M20 x 125 mm, Stainlees steel, Total height 152 mm, Articulated screw 5°, Bore holes Ø 10,5 mm, Antislip NBR black, Static load 25.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
