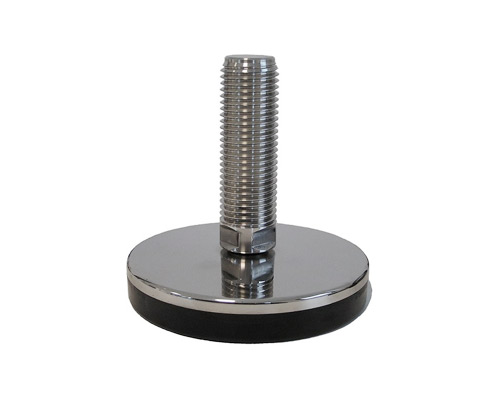

Levelling foot ANTIVIBRATION, Ø 150 mm Stainless steel, M30 x 125 mm, NBR
EAN
4061408030491
Type
45815109/150VM30
Optimize your equipment stability with our Ø 150 mm Antivibration Levelling Foot. Crafted from stainless steel and equipped with NBR antislip material, it supports a static load of 25,000 N while ensuring hygienic performance.
| Quantity | Price |
|---|---|
| From 1 |
€87.87*
|
| From 5 |
€86.72*
|
| From 15 |
€85.56*
|
| From 50 |
€82.67*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 131-230 |
| Vibration damping: | yes |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 30 |
| Spindle length (mm): | 125 |
| Balancing angle: | 0° |
Technical drawing
Levelling foot ANTIVIBRATION Stainless Steel, Ø 150 mm Stainless steel, M30 x 125 mm, Stainlees steel, Total height 177 mm, Antislip NBR black, Static load 25.000 N, Hygienic
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
