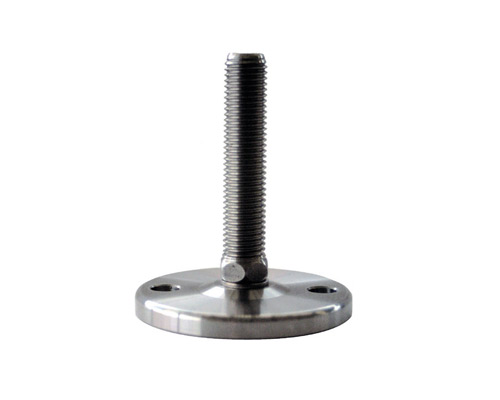

Levelling foot MASSIV Stainless Steel, Ø 80 mm, M14 x 150 mm, Drills
EAN
4061408024308
Type
45815202
Optimize your equipment stability with our MASSIV Stainless Steel Levelling Foot. Featuring a robust design, 20,000 N static load capacity, and 5° articulation for precise adjustments.
| Quantity | Price |
|---|---|
| From 1 |
€22.92*
|
| From 13 |
€21.53*
|
| From 25 |
€20.14*
|
| From 50 |
€19.17*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 71-90 |
| Ground fastening: | 2 mounting holes |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 14 |
| Spindle length (mm): | 150 |
| Balancing angle: | 5° |
| Hygiene: | No |
Technical drawing
Levelling foot MASSIV Stainless Steel, Ø 80 mm, M14 x 150 mm, Stainlees steel, Total height 170 mm, Articulated screw 5°, Bore holes Ø 10,5 mm, Static load 20.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
