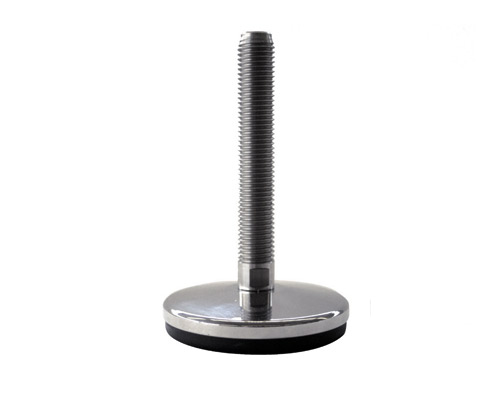

Levelling foot MASSIV Stainless Steel, Ø 75 mm, M20 x 175 mm, NBR
EAN
4061408016617
Type
45815034
Discover the MASSIV Stainless Steel Levelling Foot, designed for optimal stability with a load capacity of 20,000 N. Its articulated screw allows for a 5° adjustment, ensuring precise alignment in various applications.
| Quantity | Price |
|---|---|
| From 1 |
€27.67*
|
| From 13 |
€25.99*
|
| From 25 |
€24.32*
|
| From 50 |
€23.14*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 71-90 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 175 |
| Balancing angle: | 5° |
Technical drawing
Levelling foot MASSIV Stainless Steel, Ø 75 mm, M20 x 175 mm, Stainlees steel, Total height 207 mm, Articulated screw 5°, Antislip NBR black, Static load 20.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
