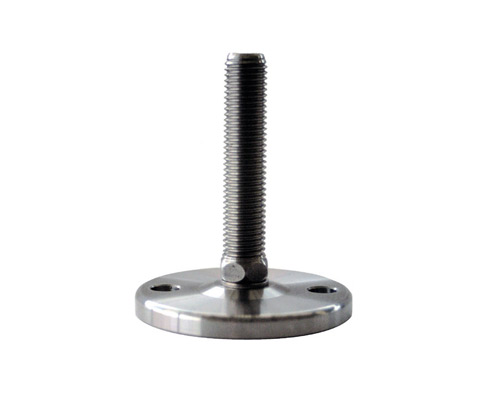

Levelling foot MASSIV Stainless Steel, Ø 80 mm, M16 x 100 mm, Drills
Discover the MASSIV Stainless Steel Levelling Foot, designed for robust stability with a load capacity of 20,000 N. Featuring an articulated screw for a 5° tilt and durable construction, it ensures reliable performance in demanding environments.
| Quantity | Price |
|---|---|
| From 1 |
€21.71*
|
| From 13 |
€20.40*
|
| From 25 |
€19.08*
|
| From 50 |
€18.16*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 71-90 |
| Ground fastening: | 2 mounting holes |
| Vibration damping: | No |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 16 |
| Spindle length (mm): | 100 |
| Balancing angle: | 5° |
| Hygiene: | No |
Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
