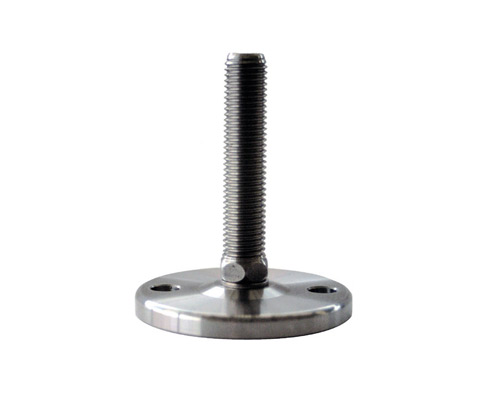

Levelling foot MASSIV Stainless Steel, Ø 80 mm, M16 x 150 mm, Drills
Introducing the MASSIV Stainless Steel Levelling Foot, featuring an 80 mm diameter and M16 x 150 mm spindle. With a static load capacity of 20,000 N and 5° adjustment, it's engineered for precision and durability in demanding industrial applications.
| Quantity | Price |
|---|---|
| From 1 |
€22.92*
|
| From 13 |
€21.53*
|
| From 25 |
€20.14*
|
| From 50 |
€19.17*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 71-90 |
| Ground fastening: | 2 mounting holes |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 16 |
| Spindle length (mm): | 150 |
| Balancing angle: | 5° |
| Hygiene: | No |
Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
