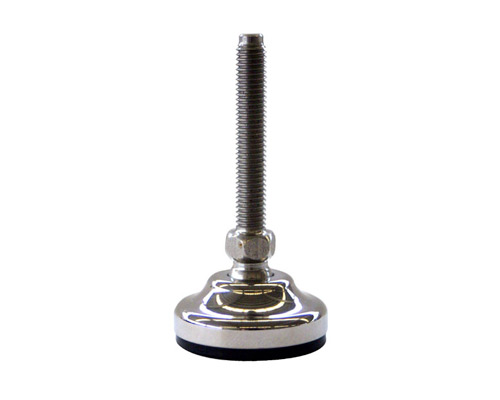

Levelling foot MASSIV Stainless Steel, Ø 30 mm, M10 x 50 mm
EAN
4061408114948
Type
45810450/D30
Enhance stability with our MASSIV Stainless Steel Levelling Foot, featuring a durable design with a 30° articulated screw and a static load capacity of 10,000 N, ideal for precision engineering applications.
| Quantity | Price |
|---|---|
| From 1 |
€9.01*
|
| From 13 |
€8.46*
|
| From 25 |
€7.92*
|
| From 50 |
€7.53*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 21-30 |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 10 |
| Spindle length (mm): | 50 |
| Balancing angle: | 30° |
| Hygiene: | No |
Technical drawing
Levelling foot MASSIV Stainless Steel, Ø 30 mm, M10 x 50 mm, Stainlees steel, Total height 73 mm, Articulated screw 30°, Static load 10.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
