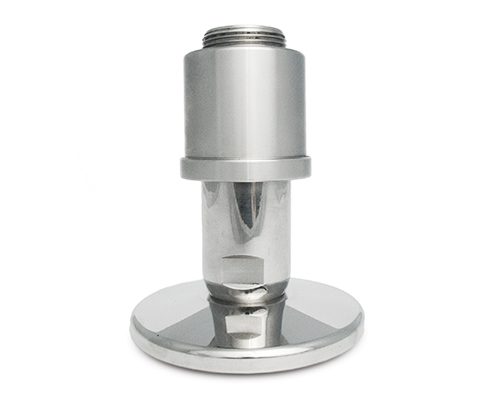

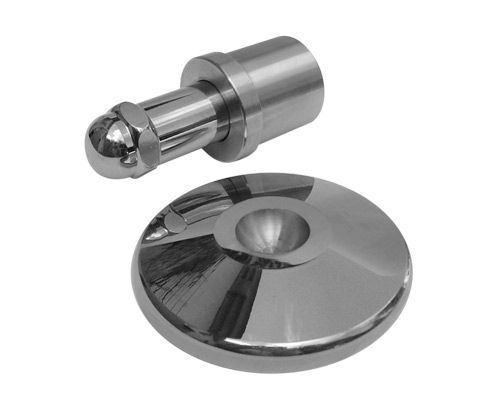

Levelling foot TEKNOTANK, Ø 100 mm Stainless steel, 3/4" x 100 mm, NBR
The TEKNOTANK leveling foot features a durable stainless steel construction with a height of 120 mm and an adjustable range of 18 mm. With a static load capacity of 70,000 N, it provides exceptional stability and hygiene, making it ideal for demanding industrial applications.
| Quantity | Price |
|---|---|
| From 1 |
€70.27*
|
| From 5 |
€69.81*
|
| From 15 |
€67.98*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 91-110 |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 3/4" |
| Spindle length (mm): | 100 |
| Balancing angle: | 14° |
| Hygiene: | Yes |
Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
