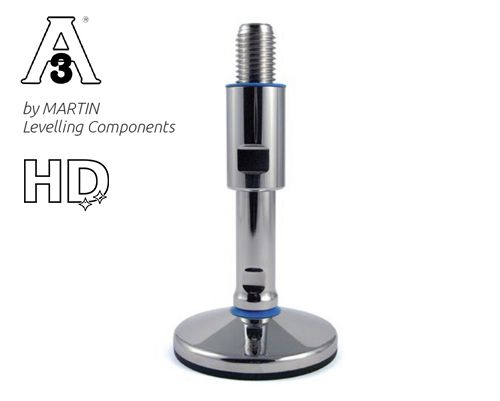

Levelling foot TEKNO-HYGIENIC 3-A, Ø 150 mm Stainless steel, M36 x 235 mm, NBR
Discover the TEKNO-HYGIENIC 3-A levelling foot, crafted from stainless steel with a robust 80,000 N static load capacity. Ideal for hygienic applications, featuring an articulated screw and adjustable height for optimal stability.
| Quantity | Price |
|---|---|
| From 1 |
€124.92*
|
| From 13 |
€122.20*
|
| From 41 |
€120.39*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 131-230 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 36 |
| Spindle length (mm): | 235 |
| Balancing angle: | 15° |
| Hygiene: | Yes |
| Hygiene certification: | 3-A Sanitary Standard |

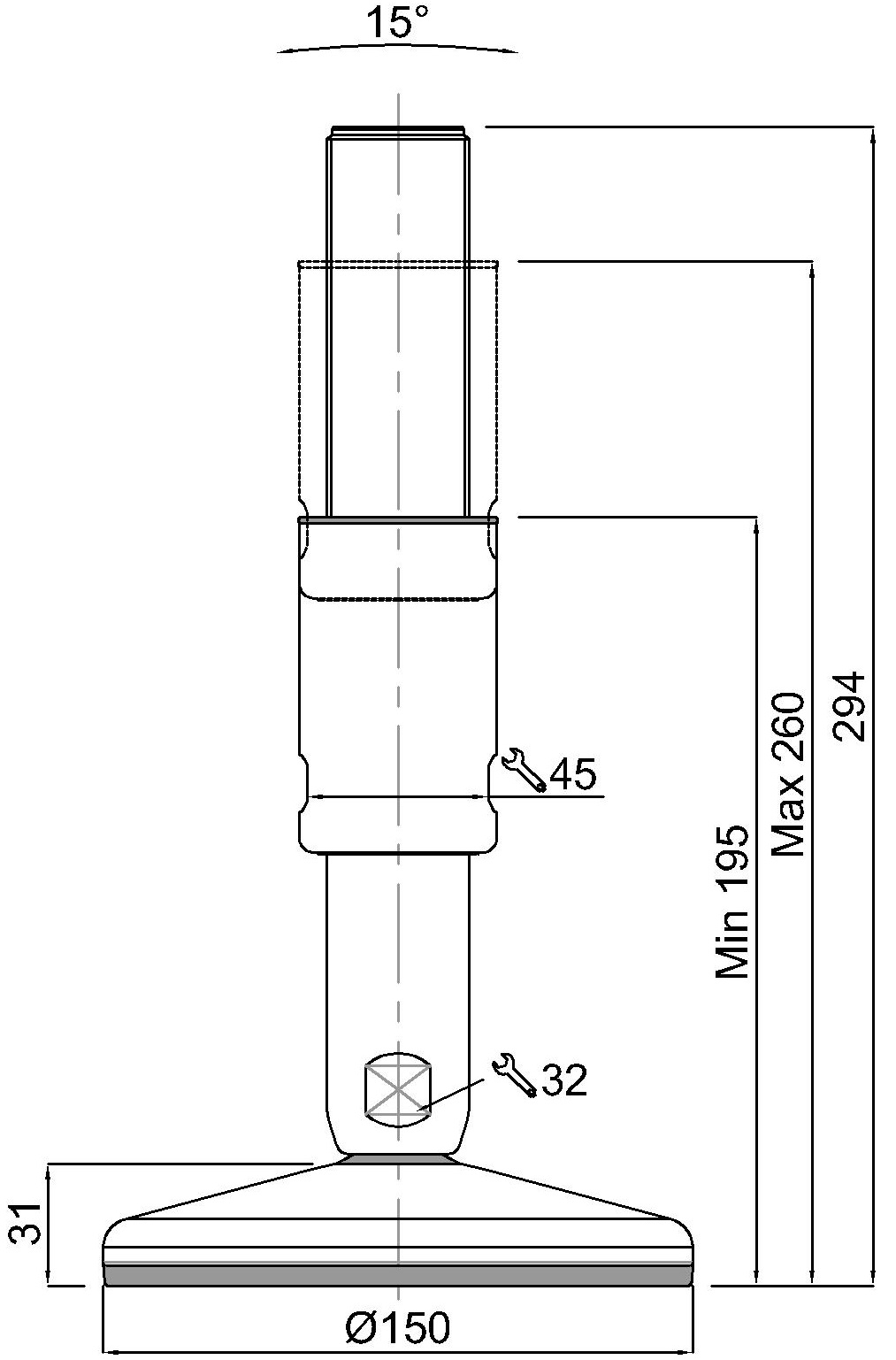

Technical drawing
