Levelling foot TEKNO-HYGIENIC 3-A, Ø 150 mm Stainless steel, M30 x 185 mm, NBR
EAN
4061408111947
Type
45827421/3A
Introducing the TEKNO-HYGIENIC 3-A leveling foot, featuring a 150 mm stainless steel base and 15° articulated screw for precision adjustments. With a static load capacity of 80,000 N and 3-A sanitation certification, it ensures reliable performance in hygienic environments.
| Quantity | Price |
|---|---|
| From 1 |
€108.21*
|
| From 13 |
€105.85*
|
| From 41 |
€104.29*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 131-230 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 30 |
| Spindle length (mm): | 185 |
| Balancing angle: | 15° |
| Hygiene: | Yes |
| Hygiene certification: | 3-A Sanitary Standard |

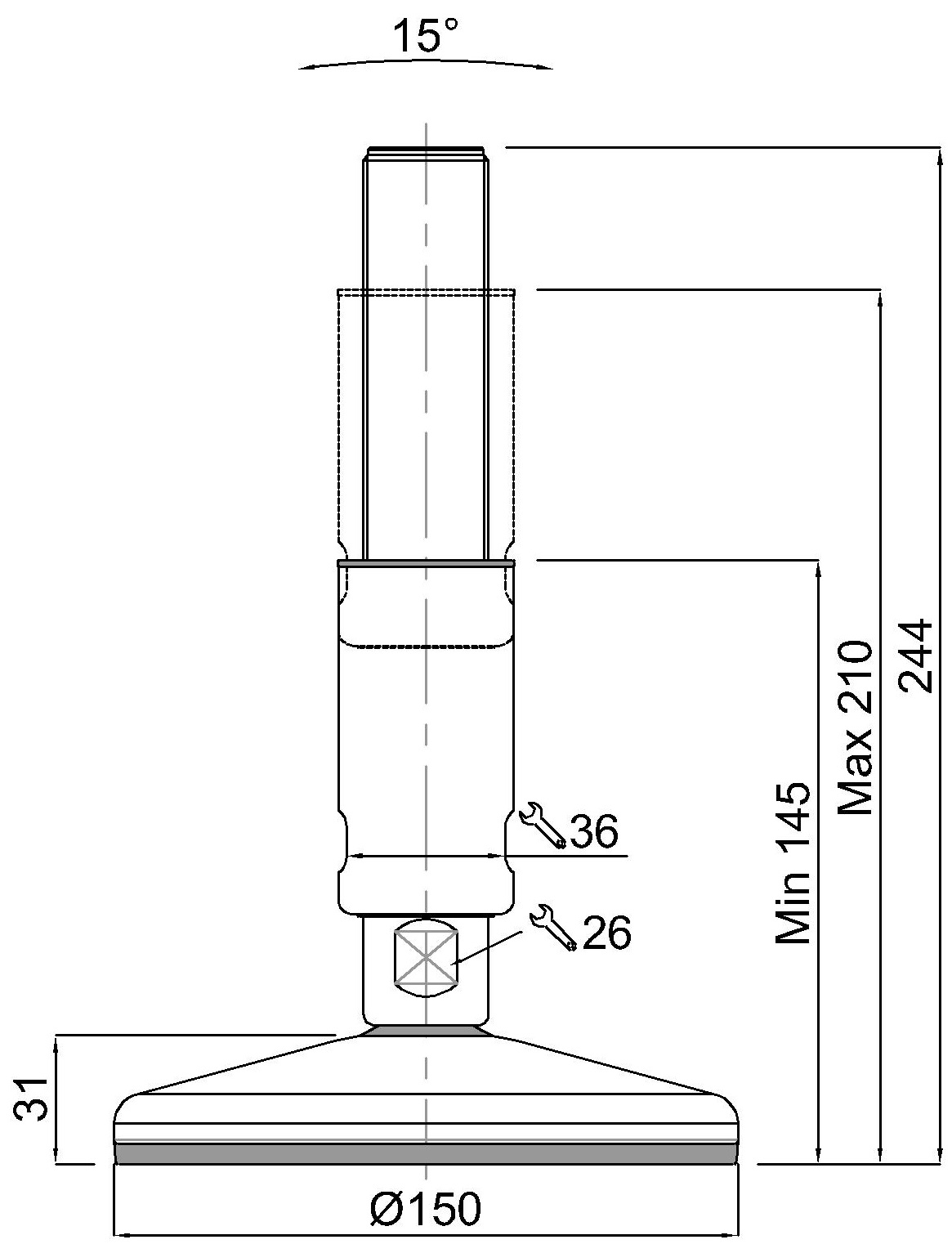

Technical drawing
Levelling foot TEKNO-HYGIENIC 3-A, Ø 150 mm Stainless steel, M30 x 185 mm, Stainlees steel, Total height 243 mm, Articulated screw 15°, Adjustment range 65 mm, Bushing 85 mm, Antislip NBR black, Static load 80.000 N
