Levelling foot TEKNO-HYGIENIC 3-A, Ø 150 mm Stainless steel, M30 x 135 mm, NBR
EAN
4061408111930
Type
45827419/3A
Introducing the TEKNO-HYGIENIC levelling foot: engineered for precision and stability with a 150 mm diameter stainless steel base and a 40 mm adjustment range, ensuring optimal hygiene compliance and robust performance up to 80,000 N.
| Quantity | Price |
|---|---|
| From 1 |
€103.44*
|
| From 13 |
€101.20*
|
| From 41 |
€99.70*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 131-230 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 30 |
| Spindle length (mm): | 135 |
| Balancing angle: | 15° |
| Hygiene: | Yes |
| Hygiene certification: | 3-A Sanitary Standard |

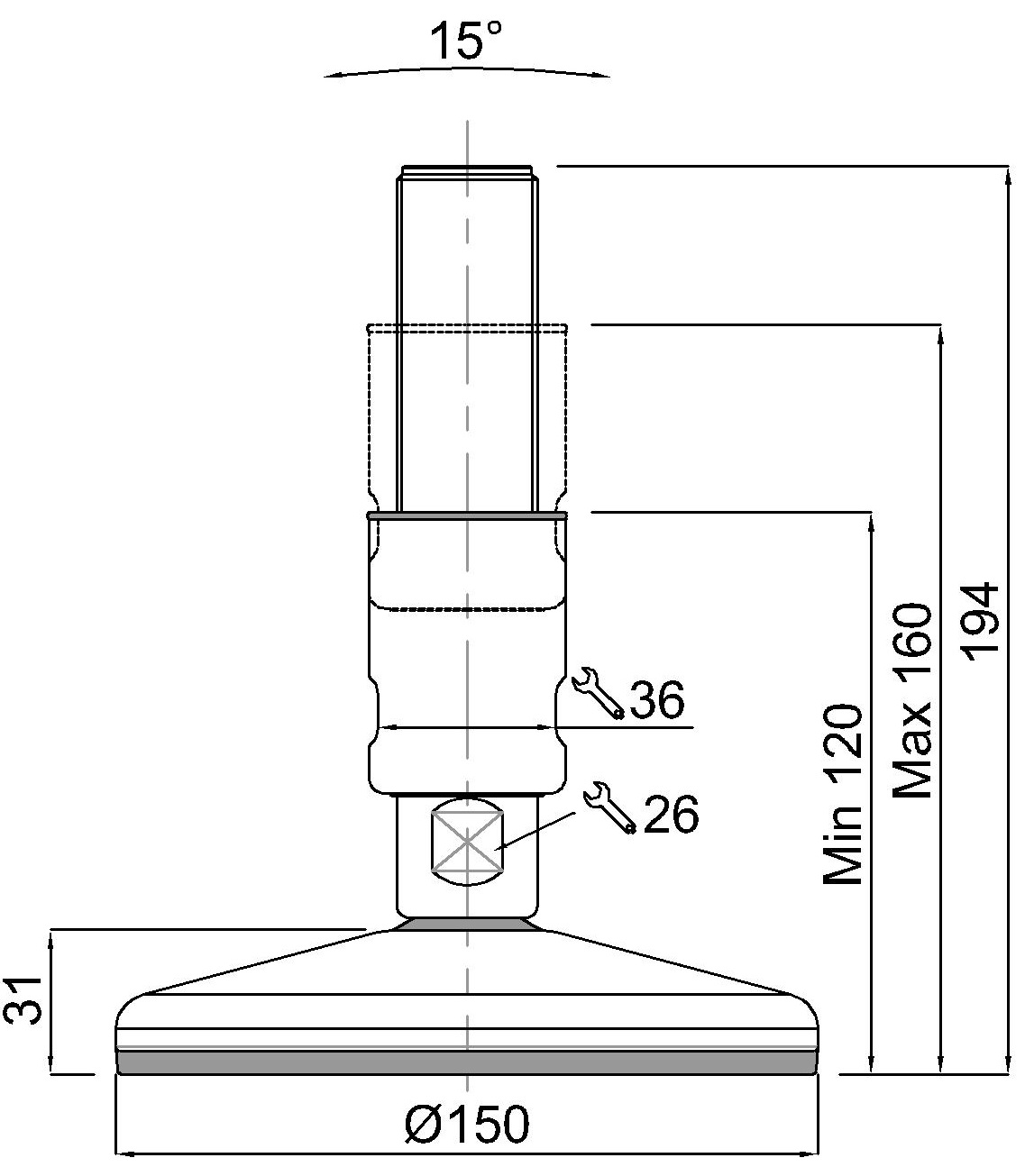

Technical drawing
Levelling foot TEKNO-HYGIENIC 3-A, Ø 150 mm Stainless steel, M30 x 135 mm, Stainlees steel, Total height 193 mm, Articulated screw 15°, Adjustment range 40 mm, Bushing 60 mm, Antislip NBR black, Static load 80.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
