Levelling foot TEKNO-HYGIENIC 3-A, Ø 150 mm Stainless steel, M24 x 140 mm, NBR
EAN
4061408111916
Type
45827415/3A
Discover the TEKNO-HYGIENIC 3-A leveling foot, designed for optimal stability with a 150 mm diameter stainless steel base. Certified for hygiene, it supports static loads up to 60,000 N and features an articulated screw for adjustments up to 45 mm.
| Quantity | Price |
|---|---|
| From 1 |
€98.84*
|
| From 13 |
€96.69*
|
| From 41 |
€95.25*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 131-230 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 24 |
| Spindle length (mm): | 140 |
| Balancing angle: | 15° |
| Hygiene: | Yes |
| Hygiene certification: | 3-A Sanitary Standard |

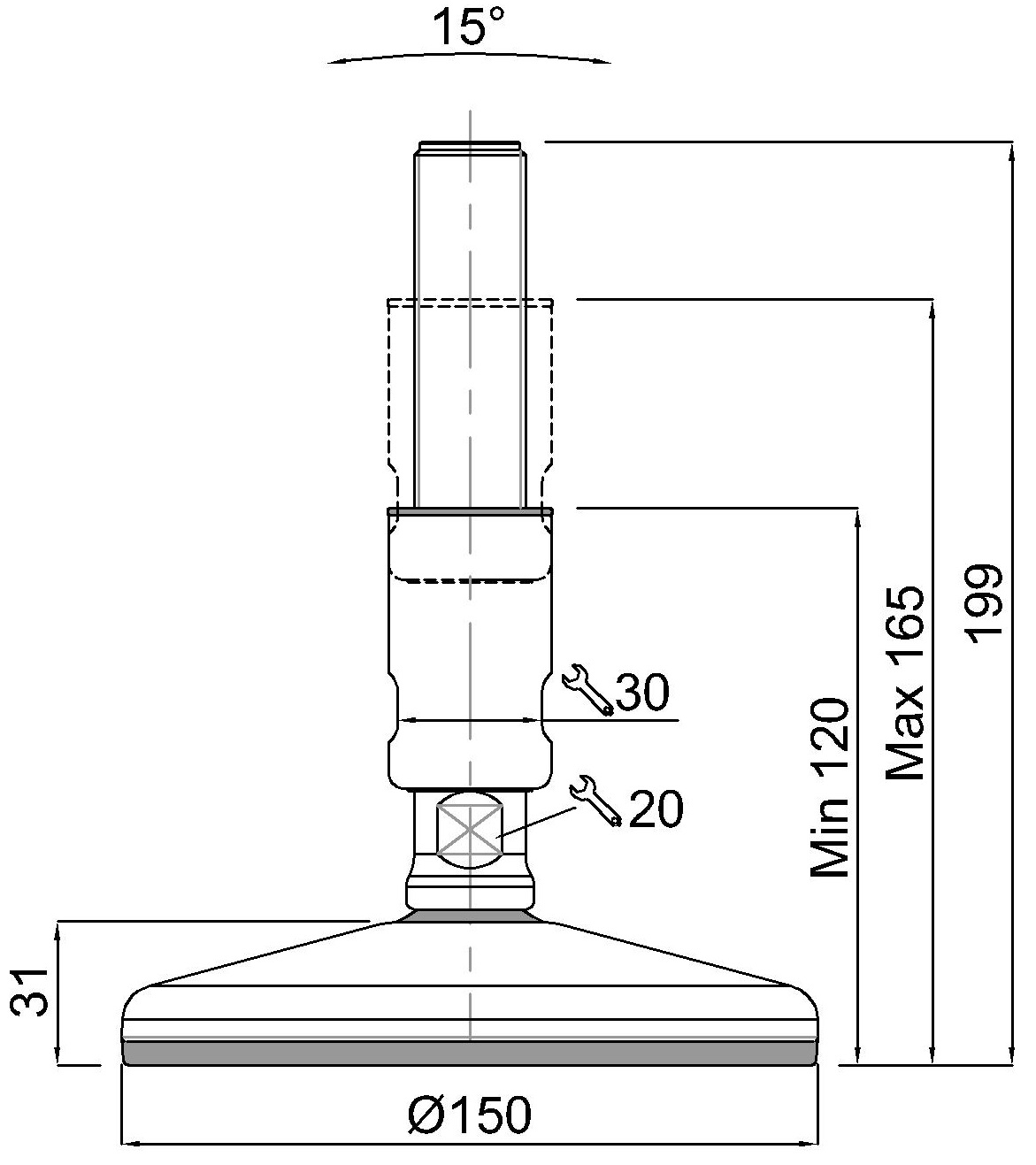

Technical drawing
Levelling foot TEKNO-HYGIENIC 3-A, Ø 150 mm Stainless steel, M24 x 140 mm, Stainlees steel, Total height 198 mm, Articulated screw 15°, Adjustment range 45 mm, Bushing 60 mm, Antislip NBR black, Static load 60.000 N
