Levelling foot TEKNO-HYGIENIC 3-A, Ø 150 mm Stainless steel, M20 x 190 mm, NBR
EAN
4061408111909
Type
45827413/3A
Discover the TEKNO-HYGIENIC 3-A Levelling Foot, designed for precision and hygiene. With a 150 mm diameter, stainless steel construction, and a static load capacity of 45,000 N, it ensures stability and compliance with 3-A Sanitary Standards.
| Quantity | Price |
|---|---|
| From 1 |
€101.55*
|
| From 13 |
€99.35*
|
| From 41 |
€97.87*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 131-230 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 190 |
| Balancing angle: | 15° |
| Hygiene: | Yes |
| Hygiene certification: | 3-A Sanitary Standard |

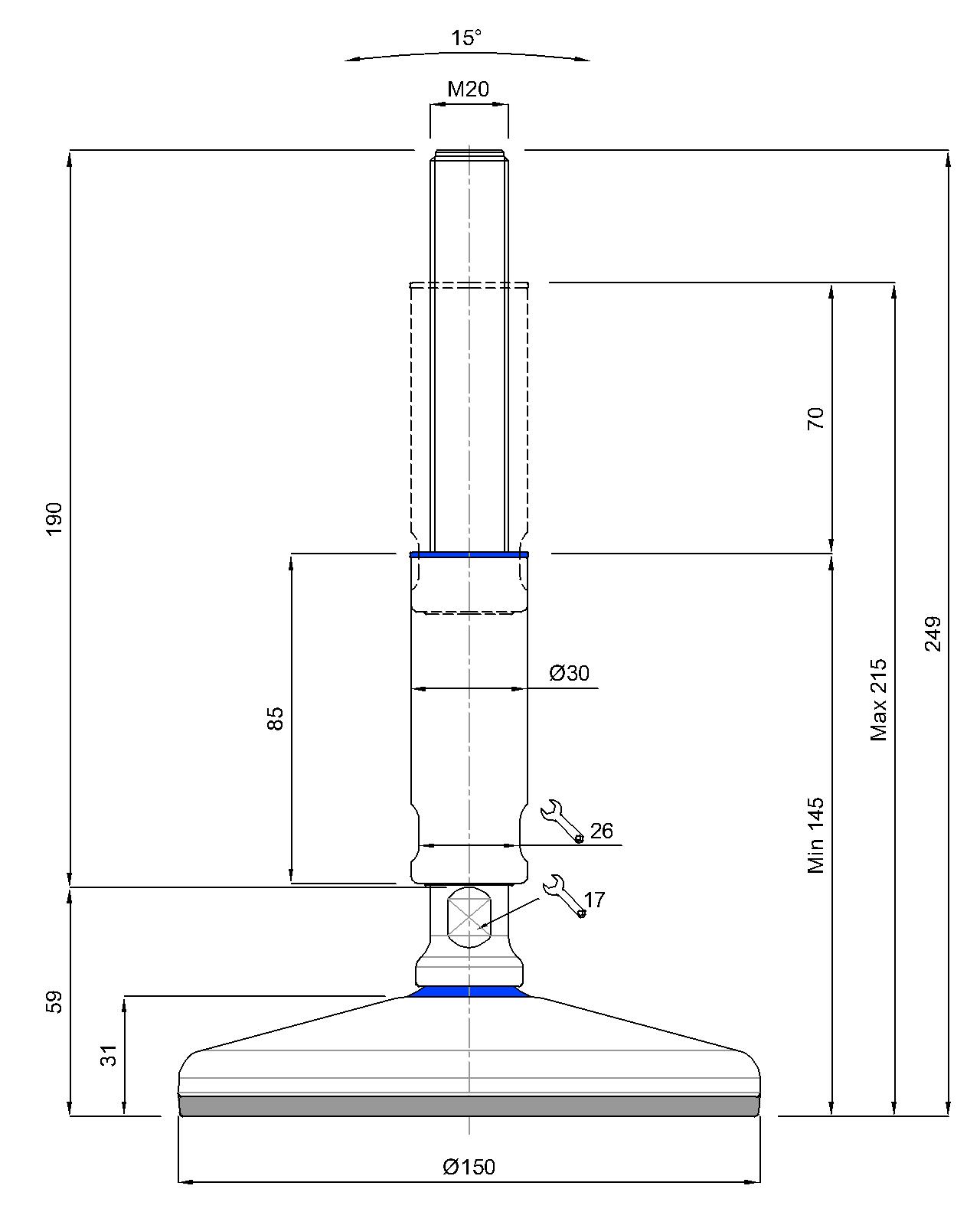

Technical drawing
Levelling foot TEKNO-HYGIENIC 3-A, Ø 150 mm Stainless steel, M20 x 190 mm, Stainlees steel, Total height 248 mm, Articulated screw 15°, Adjustment range 70 mm, Bushing 85 mm, Antislip NBR black, Static load 45.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
