Levelling foot TEKNO-HYGIENIC 3-A, Ø 100 mm Stainless steel, M16 x 190 mm, NBR
EAN
4061408111725
Type
45827363/3A
Enhance stability and hygiene with the TEKNO-HYGIENIC 3-A leveling foot. Featuring a durable stainless steel design, 15° articulation, and a remarkable static load capacity of 40,000 N.
| Quantity | Price |
|---|---|
| From 1 |
€76.11*
|
| From 13 |
€74.45*
|
| From 41 |
€73.35*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 91-110 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 16 |
| Spindle length (mm): | 190 |
| Balancing angle: | 15° |
| Hygiene: | Yes |
| Hygiene certification: | 3-A Sanitary Standard |

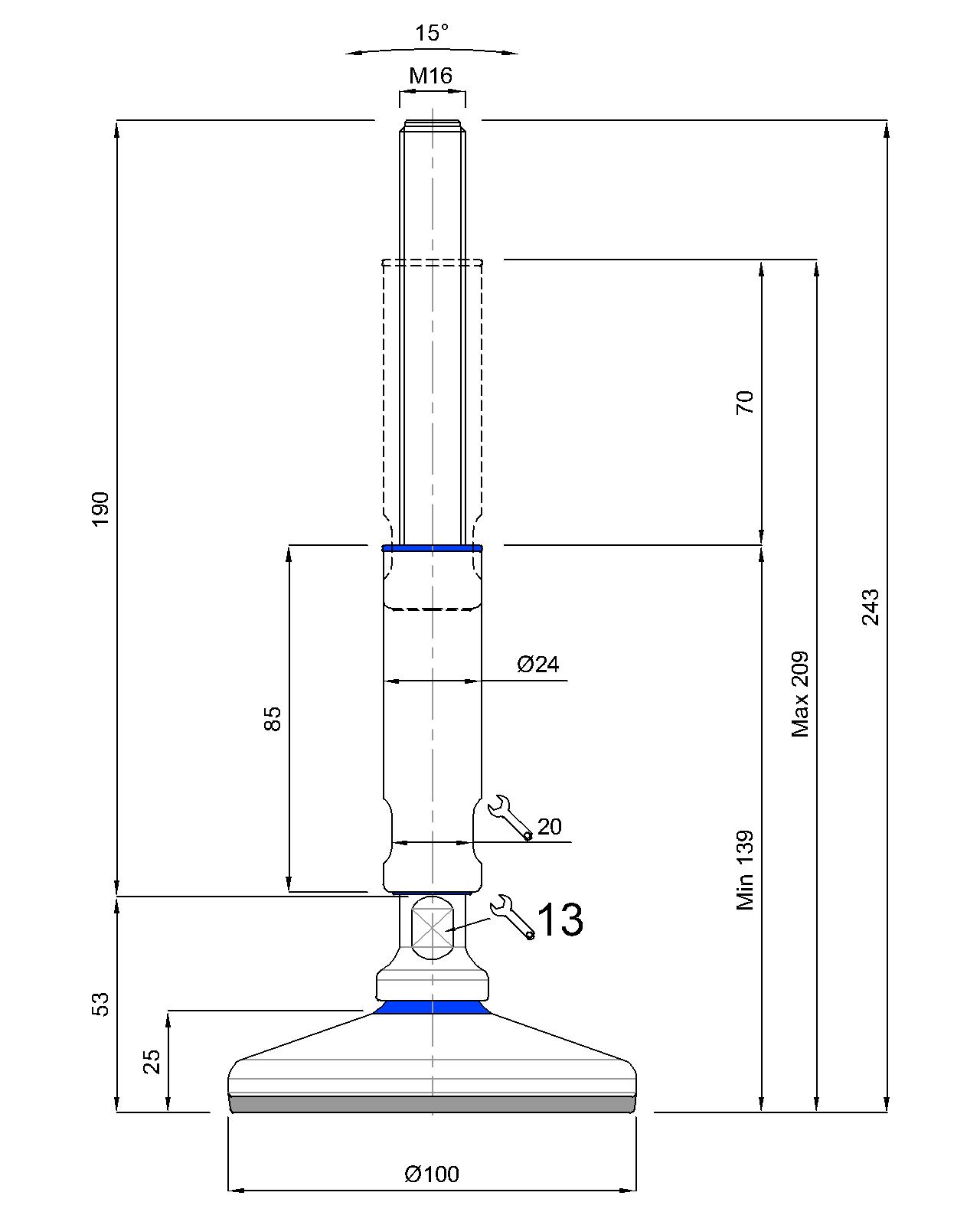

Technical drawing
Levelling foot TEKNO-HYGIENIC 3-A, Ø 100 mm Stainless steel, M16 x 190 mm, Stainlees steel, Total height 243 mm, Articulated screw 15°, Adjustment range 70 mm, Bushing 85 mm, Antislip NBR black, Static load 40.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
