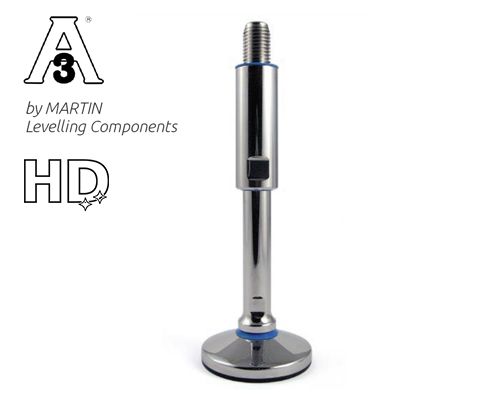

Levelling foot TEKNO-HYGIENIC 3-A, Ø 80 mm Stainless steel, M20 x 140 mm, NBR
EAN
4061408111688
Type
45827347/3A
Discover the TEKNO-HYGIENIC 3-A levelling foot, designed for optimal stability and hygiene. With a robust stainless steel construction, 45,000 N static load capacity, and a 15° articulated screw, it ensures precision and durability in demanding environments.
| Quantity | Price |
|---|---|
| From 1 |
€58.46*
|
| From 13 |
€57.19*
|
| From 41 |
€56.34*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 71-90 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 140 |
| Balancing angle: | 15° |
| Hygiene: | Yes |
| Hygiene certification: | 3-A Sanitary Standard |

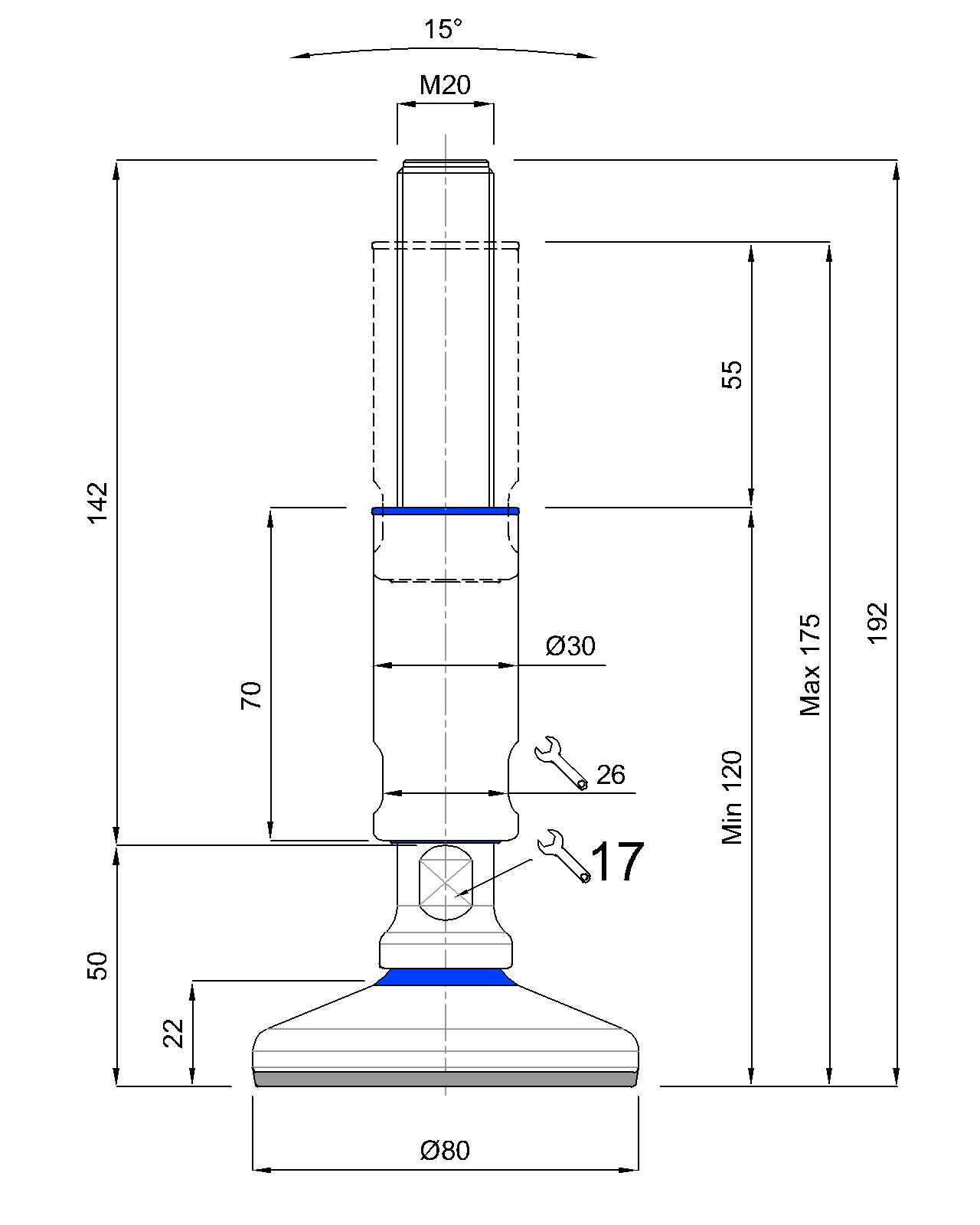

Technical drawing
Levelling foot TEKNO-HYGIENIC 3-A, Ø 80 mm Stainless steel, M20 x 140 mm, Stainlees steel, Total height 192 mm, Articulated screw 15°, Adjustment range 55 mm, Bushing 70 mm, Antislip NBR black, Static load 45.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
