Levelling foot TEKNO-HYGIENIC 3-A, Ø 80 mm Stainless steel, M16 x 190 mm, NBR
EAN
4061408111664
Type
45827343/3A
Optimize your equipment stability with the TEKNO-HYGIENIC Levelling Foot. Featuring a hygienic stainless steel design, articulated adjustment, and a robust static load capacity of 40,000 N, it ensures reliable performance in demanding environments.
| Quantity | Price |
|---|---|
| From 1 |
€62.97*
|
| From 13 |
€61.60*
|
| From 41 |
€60.69*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 71-90 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 16 |
| Spindle length (mm): | 190 |
| Balancing angle: | 15° |
| Hygiene: | Yes |
| Hygiene certification: | 3-A Sanitary Standard |

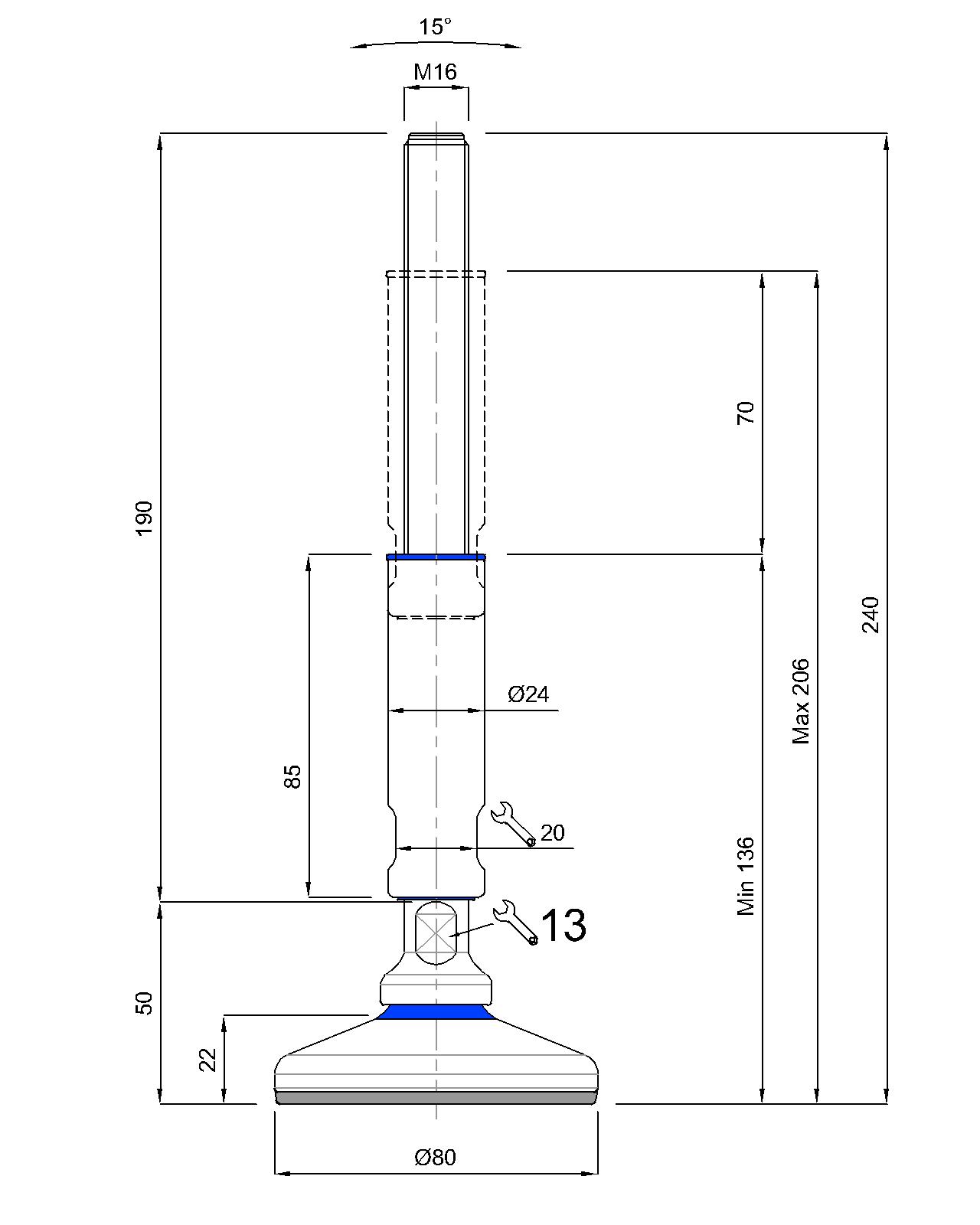

Technical drawing
Levelling foot TEKNO-HYGIENIC 3-A, Ø 80 mm Stainless steel, M16 x 190 mm, Stainlees steel, Total height 240 mm, Articulated screw 15°, Adjustment range 70 mm, Bushing 85 mm, Antislip NBR black, Static load 40.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
