Levelling foot TEKNO-HYGIENIC 3-A, Ø 120 mm Stainless steel, M16 x 140 mm, NBR
EAN
4061408111596
Type
45827381/3A
Introducing the TEKNO-HYGIENIC 3-A leveling foot: Designed for rigorous hygiene compliance, stainless steel construction, and a robust static load capacity of 40,000 N, ensuring stability and reliability.
| Quantity | Price |
|---|---|
| From 1 |
€73.71*
|
| From 13 |
€72.10*
|
| From 41 |
€71.04*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 111-130 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 16 |
| Spindle length (mm): | 140 |
| Balancing angle: | 15° |
| Hygiene: | Yes |
| Hygiene certification: | 3-A Sanitary Standard |

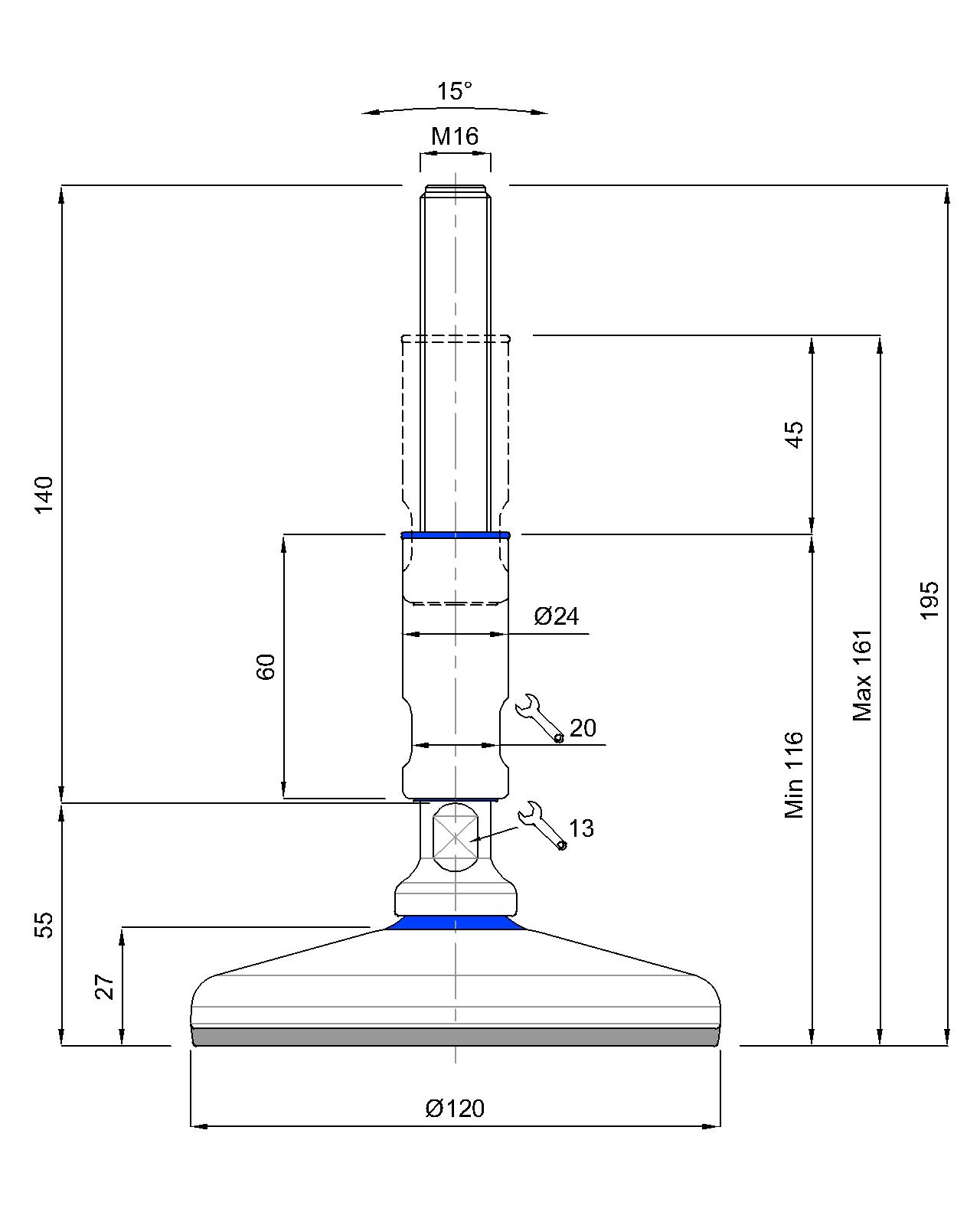

Technical drawing
Levelling foot TEKNO-HYGIENIC 3-A, Ø 120 mm Stainless steel, M16 x 140 mm, Stainlees steel, Total height 195 mm, Articulated screw 15°, Adjustment range 45 mm, Bushing 60 mm, Antislip NBR black, Static load 40.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
